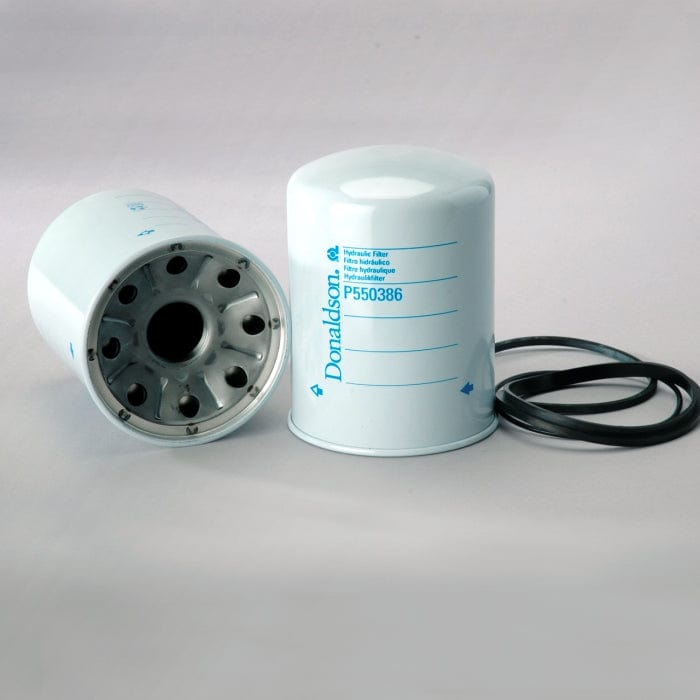

Hydraulic Filter, Spin-On - Donaldson P550386
Hydraulic Filter, Spin-On - Donaldson P550386
Regular price
£26.79
Regular price
Sale price
£26.79
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P550386
Hydraulic Filter, Spin-On| Outer Diameter | 5.00 inch (127 mm) |
| Thread Size | 1 1/2-16 UN |
| Length | 6.66 inch (169.2 mm) |
| Gasket OD | 5.04 inch (128 mm) |
| Gasket ID | 4.76 inch (120.9 mm) |
| Efficiency Beta 2 | 5 micron |
| Efficiency Beta 1000 | 24 micron |
| Style | Spin-On |
| Series | W023, SP50/60, SP80/90S, P100/120 |
| Media Type | Cellulose |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 127 mm (5.00 inch)
- Thread Size: 1 1/2-16 UN
- Length: 169.2 mm (6.66 inch)
- Gasket OD: 128 mm (5.04 inch)
- Gasket ID: 120.9 mm (4.76 inch)
- Efficiency Beta 2: 5 micron
- Efficiency Beta 1000: 24 micron
- Style: Spin-On
- Series: W023
- SP50/60:
- SP80/90S:
- P100/120:
- Media Type: Cellulose
Packaged Dimensions
- Packaged Length: 0.45 FT
- Packaged Width: 0.42 FT
- Packaged Height: 0.60 FT
- Packaged Weight: 1.180 kg (2.60 lb)
- Packaged Volume: 0.003 m3 (0.11 ft3)
Other Information
- Country of Origin: United States
- NMFC Code: 121510
- HTS Code: 8421298090
- UPC Code: 742330042397
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| AGCO | K23020 | |
| ALLIS-CHALMERS | 71329308 | |
| CAN-FLO | RSE603F | |
| CAN-FLO | RSE503N | |
| CAN-FLO | RSE503F | |
| CASE/CASE IH | 123085G2 | |
| CATERPILLAR | 3I1669 | |
| FLOW EZY | FEE5103 | |
| FPC | FPE503 | |
| FPC | FPE5003N | |
| FPC | FPE503N | |
| GRESEN | K23020 | |
| HEIL | 750585 | |
| IKRON | HEK4430155ASFG010 | |
| IOWA MOOD TOOLING INC | 73540362 | |
| JOHN DEERE | GG17032672 | |
| MOOG | 160164 | |
| MORBARK | 26838098 | |
| MP FILTRI | CSG100P05A | |
| NEW HOLLAND | 591567 | |
| NORMAN ULTRAPOROUS | 503 | |
| PTI | F4E050BCB | |
| PTI | F4E051BCB | |
| VICKERS | 575994CEL | |
| VICKERS | 575994 | |
| VICKERS | 737724 | |
| VICKERS | OFRS60X3M | |
| VICKERS | 737724CEL | |
| VICKERS | 737817 | |
| VMC | HF550386 |
