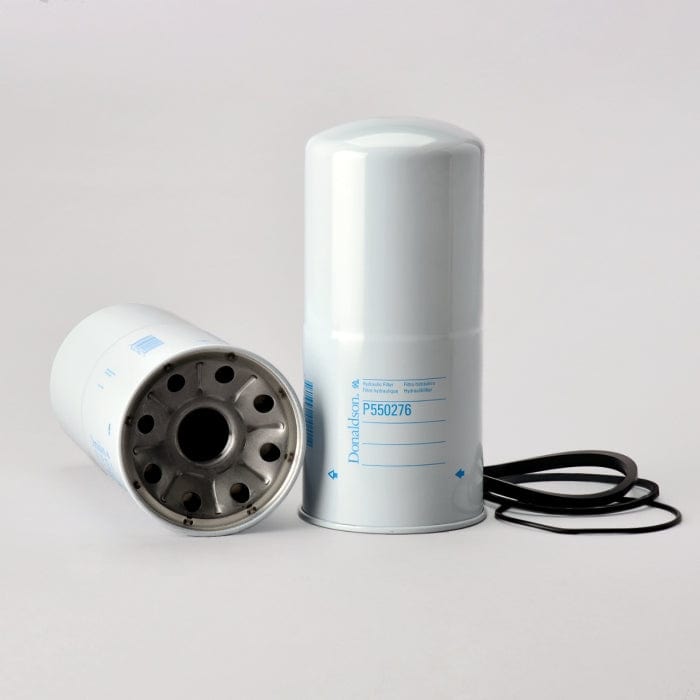

• Donaldson Hydraulic Filter, Spin-On - Donaldson P550276
1 1

Hydraulic Filter, Spin-On - Donaldson P550276

Hydraulic Filter, Spin-On - Donaldson P550276

£84.75
£84.75
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P550276

Hydraulic Filter, Spin-On
Outer Diameter 5.04 inch (128 mm)
Thread Size 1 1/2-16 UN
Length 10.66 inch (270.8 mm)
Gasket OD 5.04 inch (128 mm)
Gasket ID 4.76 inch (120.9 mm)
Efficiency Beta 2 150 micron
Style Spin-On
Series W023, SP50/60, SP80/90, SP100/120
Media Type Wire Mesh
Primary Application ZINGA LE100
View full details

Specifications

Attributes

  • Mesh Rating: 150 micron
  • Outer Diameter: 128 mm (5.04 inch)
  • Thread Size: 1 1/2-16 UN
  • Length: 270.8 mm (10.66 inch)
  • Gasket OD: 128 mm (5.04 inch)
  • Gasket ID: 120.9 mm (4.76 inch)
  • Efficiency Beta 2: 150 micron
  • Style: Spin-On
  • Series: W023
  • SP50/60:
  • SP80/90:
  • SP100/120:
  • Media Type: Wire Mesh
  • Primary Application: ZINGA LE100

Packaged Dimensions

  • Packaged Length: 0.118 m (4.70 inch)
  • Packaged Width: 0.128 m (5.10 inch)
  • Packaged Height: 0.263 m (10.50 inch)
  • Packaged Weight: 1.532 kg (3.38 lb)
  • Packaged Volume: 0.004 m3 (0.15 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-09
  • HTS Code: 8421298090
  • UPC Code: 742330042014

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
AMERICAN PARTS 91608
BIG A 91608
CASE/CASE IH 73133001
CATERPILLAR 9U6985
CHIP BLASTER 3536
CMI 556500002001
FIAT 73133001
FORD 9576P550276
FPC FPE70100M
INTERNATIONAL 73133001
MP FILTRI CG150M90A
MP FILTRI CSG150M125A
MP FILTRI CSG150M90A
SNORKEL 5080046
TIGERCAT AY059
VMC HF550276
