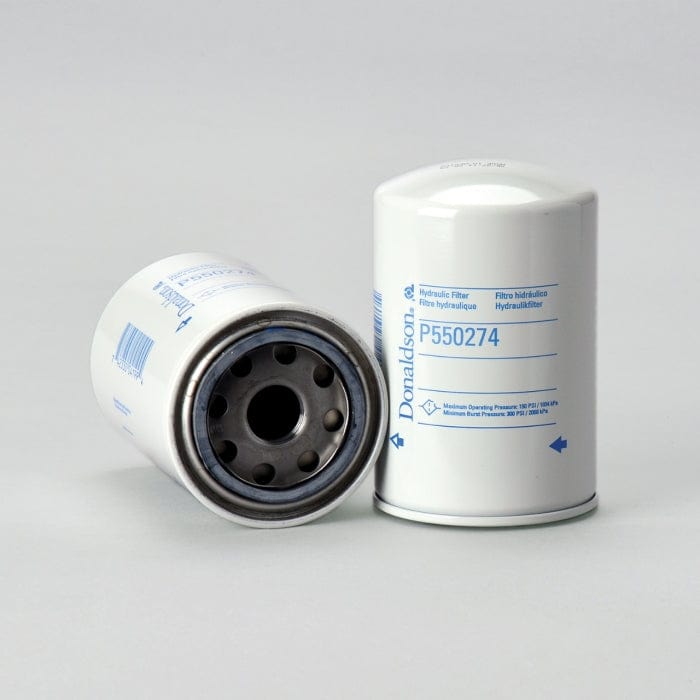

Hydraulic Filter, Spin-On - Donaldson P550274

Hydraulic Filter, Spin-On - Donaldson P550274

£31.93
£31.93
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P550274

Hydraulic Filter, Spin-On
Outer Diameter 3.72 inch (94.5 mm)
Thread Size 1-12 UN
Length 5.76 inch (146.3 mm)
Gasket OD 2.83 inch (71.9 mm)
Gasket ID 2.46 inch (62.5 mm)
Efficiency Beta 2 150 micron
Style Spin-On
Series SP15/25
Media Type Wire Mesh
Primary Application ZINGA AE100
View full details

Specifications

Attributes

  • Mesh Rating: 150 micron
  • Outer Diameter: 94.5 mm (3.72 inch)
  • Thread Size: 1-12 UN
  • Length: 146.3 mm (5.76 inch)
  • Gasket OD: 71.9 mm (2.83 inch)
  • Gasket ID: 62.5 mm (2.46 inch)
  • Efficiency Beta 2: 150 micron
  • Style: Spin-On
  • Series: SP15/25
  • Media Type: Wire Mesh
  • Primary Application: ZINGA AE100

Packaged Dimensions

  • Packaged Length: 0.089 m (3.54 inch)
  • Packaged Width: 0.089 m (3.54 inch)
  • Packaged Height: 0.148 m (5.91 inch)
  • Packaged Weight: 0.513 kg (1.13 lb)
  • Packaged Volume: 0.001 m3 (0.04 ft3)

Other Information

  • Country of Origin: Mexico
  • NMFC Code: 069100-10
  • HTS Code: 8421298090
  • UPC Code: 742330041994

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
BARBER-GREENE 29S64
BARBER-GREENE 3I1965
BIG A 92614
CATERPILLAR 3I1965
CATERPILLAR 29S64
FLOW EZY FEE30100
FPC FPE30100M
KRALINATOR L1614
KUBOTA M4950
LENZ 176535
LENZ CP752100M
LENZ CP752385
LHA SPE140W
LHA SPE15140W
MP FILTRI CSG050M125A
MP FILTRI CSG50M125A
MP FILTRI CSG70M125A
MP FILTRI CSH50M90A
NEOPLAN DONP550274
NORMAN ULTRAPOROUS 3100
PRINCE FA150
TAYLOR 2403362
VMC HF550274
