• Donaldson Hydraulic Filter, Spin-On - Donaldson P502382
1 1

Hydraulic Filter, Spin-On - Donaldson P502382

Hydraulic Filter, Spin-On - Donaldson P502382

£38.79
£38.79
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

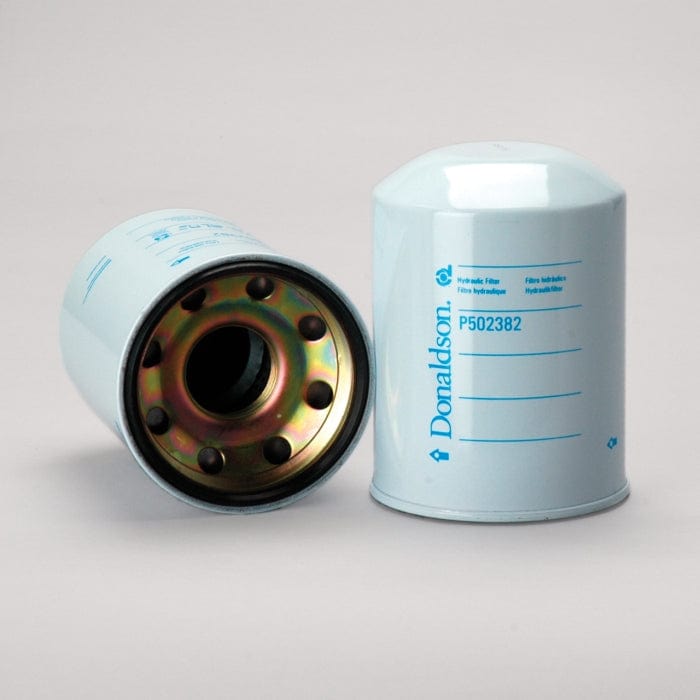

Donaldson P502382

Hydraulic Filter, Spin-On
Outer Diameter 5.25 inch (133.4 mm)
Inner Diameter 3.54 inch (90 mm)
Thread Size M48 x 2
Length 6.85 inch (174 mm)
Gasket ID 4.41 inch (112 mm)
Efficiency Beta 2 7 micron
Anti-Drainback Valve No
Bypass Valve No
Style Spin-On
Media Type Cellulose
Primary Application HITACHI 4205684
View full details

Specifications

Attributes

  • Outer Diameter: 133.4 mm (5.25 inch)
  • Inner Diameter: 90 mm (3.54 inch)
  • Thread Size: M48 x 2
  • Length: 174 mm (6.85 inch)
  • Gasket ID: 112 mm (4.41 inch)
  • Efficiency Beta 2: 7 micron
  • Anti-Drainback Valve: No
  • Bypass Valve: No
  • Style: Spin-On
  • Media Type: Cellulose
  • Primary Application: HITACHI 4205684

Packaged Dimensions

  • Packaged Length: 0.138 m (5.50 inch)
  • Packaged Width: 0.135 m (5.40 inch)
  • Packaged Height: 0.190 m (7.60 inch)
  • Packaged Weight: 1.332 kg (2.94 lb)
  • Packaged Volume: 0.004 m3 (0.13 ft3)

Other Information

  • Country of Origin: Indonesia
  • NMFC Code: 069100-05
  • HTS Code: 8421298090
  • UPC Code: 742330205488

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
DAEWOO 56203400
FURUKAWA 56203400
HITACHI 4318737
HITACHI 4205684
KOBELCO 2446U254S3
KOBELCO 2446U146S3
KOMATSU 2096076211
KOMATSU 1136033130
KOMATSU 2096076210
KOMATSU 1036023240
KOMATSU 1136043321
KOMATSU 1136043320
KOMATSU 1136043130
KUBOTA 6877362230
SAMSUNG 104207040
SDLG 11214484
VOLVO 14524171
VOLVO 104207040
XCMG 860157814
