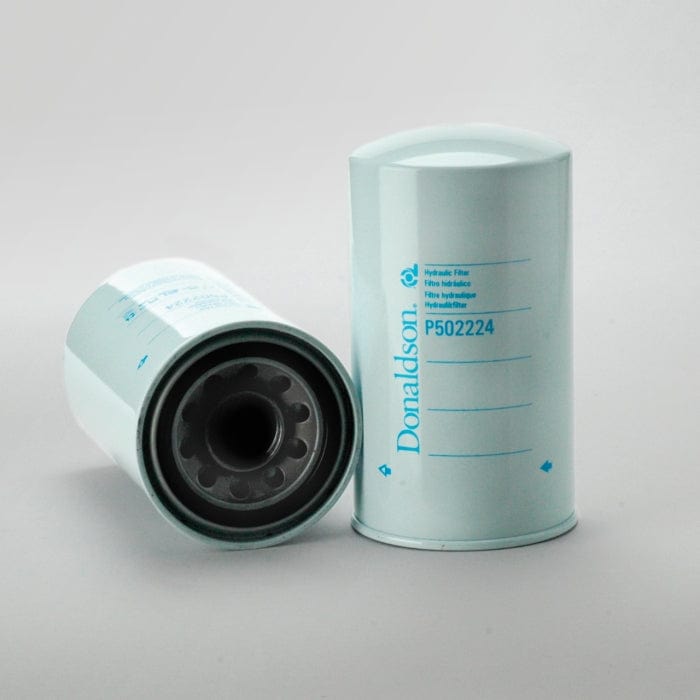

Hydraulic Filter, Spin-On - Donaldson P502224
Hydraulic Filter, Spin-On - Donaldson P502224
Regular price
£38.51
Regular price
Sale price
£38.51
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P502224
Hydraulic Filter, Spin-On| Outer Diameter | 5.35 inch (135.89 mm) |
| Thread Size | 1 3/4-16 |
| Length | 9.57 inch (243.08 mm) |
| Gasket OD | 4.29 inch (108.97 mm) |
| Gasket ID | 3.90 inch (99.06 mm) |
| Efficiency Beta 2 | 9 micron |
| Efficiency Beta 1000 | 26 micron |
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 17 psi (1.2 bar) |
| Bypass Valve Setting HR | 25 psi (1.7 bar) |
| Style | Spin-On |
| Media Type | Cellulose |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 135.89 mm (5.35 inch)
- Thread Size: 1 3/4-16
- Length: 243.08 mm (9.57 inch)
- Gasket OD: 108.97 mm (4.29 inch)
- Gasket ID: 99.06 mm (3.90 inch)
- Efficiency Beta 2: 9 micron
- Efficiency Beta 1000: 26 micron
- Bypass Valve: Yes
- Bypass Valve Setting LR: 1.2 bar (17 psi)
- Bypass Valve Setting HR: 1.7 bar (25 psi)
- Style: Spin-On
- Media Type: Cellulose
Packaged Dimensions
- Packaged Length: 0.148 m (5.90 inch)
- Packaged Width: 0.145 m (5.80 inch)
- Packaged Height: 0.258 m (10.30 inch)
- Packaged Weight: 1.891 kg (4.17 lb)
- Packaged Volume: 0.006 m3 (0.20 ft3)
Other Information
- Country of Origin: Indonesia
- NMFC Code: 069100-09
- HTS Code: 8421298090
- UPC Code: 742330110966
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| BIG A | 91107 | |
| BIG A | 91603 | |
| BIG A | 91421 | |
| CASE/CASE IH | 1931173 | |
| COOPERS | HSM6170 | |
| FORD | FONNB486BB | |
| FORD | F0NNB486BB | |
| GREYFRIARS | HS7685 | |
| KRALINATOR | L7421 | |
| NEW HOLLAND | 82005016 | |
| NEW HOLLAND | F0NNB486BB | |
| NEW HOLLAND | 81865736 | |
| NEW HOLLAND | L82005016 | |
| VMC | HF502224 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| CASE/CASE IH MXM120 | - | TRACTOR | MXM SERIES | - MXM120 | - |
| NEW HOLLAND 130 | - | TRACTOR | - | - 130 | - |
| NEW HOLLAND 135 | - | TRACTOR | - | - 135 | - |
| NEW HOLLAND MX125 | - | TRACTOR | - | - MX125 | - |
| NEW HOLLAND T6010 | - | TRACTOR | T6000 SERIES | NEW HOLLAND NEF445T/MM1 | - |
| NEW HOLLAND T6020 | - | TRACTOR | T6000 SERIES | NEW HOLLAND NEF445TA EGD | - |
| NEW HOLLAND T6030 | - | TRACTOR | T6000 SERIES | NEW HOLLAND NEF667TA/MEA | - |
| NEW HOLLAND T6050 | - | TRACTOR | T6000 SERIES | NEW HOLLAND NEF667TA | - |
| NEW HOLLAND T6060 | - | TRACTOR | T6000 SERIES | NEW HOLLAND NEF445TA | - |
| NEW HOLLAND T6070 | - | TRACTOR | T6000 SERIES | NEW HOLLAND NEF667TA | - |
| NEW HOLLAND TM115 | - | TRACTOR | - | - TM115 | - |
| NEW HOLLAND TM165 | - | TRACTOR | - | - TM165 | - |
| NEW HOLLAND TS100A | - | TRACTOR | - | NEW HOLLAND 4273 | - |
| NEW HOLLAND TS110A | - | TRACTOR | - | NEW HOLLAND 4273 | - |
