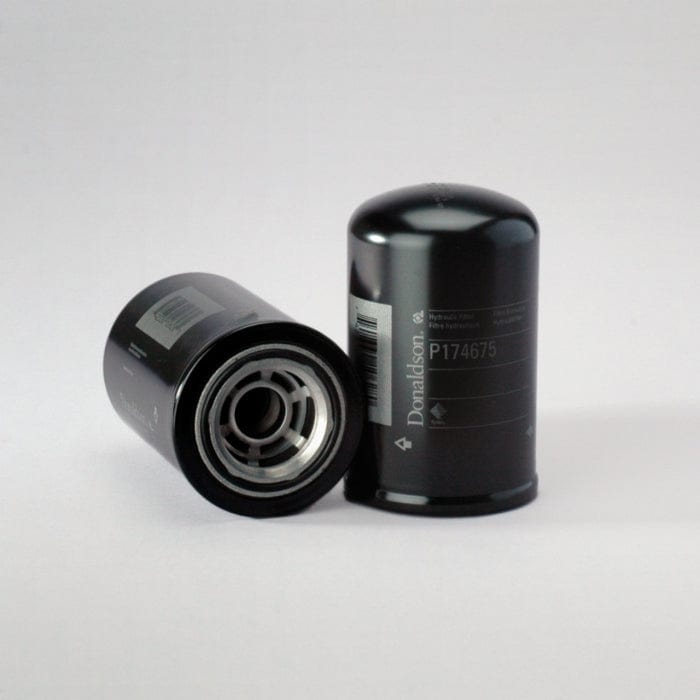

Hydraulic Filter, Spin-On - Donaldson P174675
Hydraulic Filter, Spin-On - Donaldson P174675
Regular price
£61.83
Regular price
Sale price
£61.83
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P174675
Hydraulic Filter, Spin-OnShare
Collapsible content
Specifications
Attributes
- Outer Diameter: 97 mm (3.82 inch)
- Thread Size: 2-16 UN
- Length: 151.64 mm (5.97 inch)
- Gasket OD: 70.15 mm (2.76 inch)
- Gasket ID: 63.1 mm (2.48 inch)
- Efficiency Beta 1000: 23 micron
- Bypass Valve: Yes
- Bypass Valve Setting LR: 2.1 bar (30 psi)
- Bypass Valve Setting HR: 3.5 bar (51 psi)
- Style: Spin-On
- Media Type: Synthetic
- Primary Application: CLARK 4202525
Packaged Dimensions
- Packaged Length: 0.105 m (4.20 inch)
- Packaged Width: 0.105 m (4.20 inch)
- Packaged Height: 0.170 m (6.80 inch)
- Packaged Weight: 0.915 kg (2.02 lb)
- Packaged Volume: 0.002 m3 (0.07 ft3)
Other Information
- Country of Origin: United States
- NMFC Code: 069100-11
- HTS Code: 8421298090
- UPC Code: 742330106280
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| AMERICAN PARTS | 92474 | |
| ATLAS COPCO | 5112280563 | |
| ATLAS COPCO | 5112302498 | |
| AVELING-BARFORD | ABP3001583 | higher capacity, long version |
| BENFRA | 54609 | |
| BERGERAT MONNOYEUR | E6814 | higher capacity, long version |
| BIG A | 91129 | |
| BIG A | 92474 | |
| BOMAG | 31901320 | higher capacity, long version |
| BRAY | 234090 | |
| CASE/CASE IH | D146735 | higher capacity, long version |
| CASE/CASE IH | D87214 | higher capacity, long version |
| CASE/CASE IH | 84550621 | higher capacity, long version |
| CASE/CASE IH | 146735 | higher capacity, long version |
| CASE/CASE IH | 87214 | higher capacity, long version |
| CATERPILLAR | 0814780 | |
| CATERPILLAR | 1238189 | higher capacity, long version |
| CATERPILLAR | 814780 | higher capacity, long version |
| CATERPILLAR | 3I1980 | |
| CLAAS | 3174370 | |
| CLAAS | 322998 | |
| CLAAS | 317437 | higher capacity, long version |
| CLARK | 234099 | higher capacity, long version |
| CLARK | 4202505 | |
| CLARK | 4202525 | higher capacity, long version |
| CLARK | 246262 | higher capacity, long version |
| CLARK | 119936862 | higher capacity, long version |
| CLARK | 247050 | higher capacity, long version |
| CLARK | 247051 | higher capacity, long version |
| CLARK | 8106 | |
| CLARK | 06247050 | |
| CLARK,J.L. | 234099 | higher capacity, long version |
| CLARK,J.L. | 247051 | |
| CLARK,J.L. | 246262 | higher capacity, long version |
| CLARK,J.L. | 247050 | higher capacity, long version |
| COOPERS | HSM6182 | |
| DANA | 4208237 | |
| DANA | 4209211 | |
| DANA | 420252590 | |
| DANA | 4206169 | |
| DEZZI | 350007 | |
| DIECI | 5H4209211 | |
| EATON | 2115522 | |
| EUCLID | 2340990 | higher capacity, long version |
| EUCLID | 11992886 | higher capacity, long version |
| EUCLID | 11993686 | higher capacity, long version |
| FENWICK | 19982301 | higher capacity, long version |
| FERMEL | 91500115 | |
| FIAT | 73118171 | higher capacity, long version |
| FIAT | 79104646 | higher capacity, long version |
| FIAT | 906041007 | higher capacity, long version |
| FIATALLIS | 73118171 | |
| GEHL | L99184 | |
| GRADALL | 4202525 | |
| GRADALL | 91474250 | higher capacity, long version |
| GRADALL | 90204732 | |
| GREYFRIARS | HS7634 | higher capacity, long version |
| GREYFRIARS | HS7639 | higher capacity, long version |
| GROVE | 7437000873 | |
| HAMM | 2506785018 | |
| HEDEN | 29802075 | higher capacity, long version |
| HITACHI | L79104646 | |
| HITACHI | 906041007 | higher capacity, long version |
| HITACHI | 73118171 | higher capacity, long version |
| HYSTER | 1655472 | |
| IMPERIAL | CV102712 | |
| INGERSOLL RAND | 58886136 | higher capacity, long version |
| INTRUPA | 83285 | higher capacity, long version |
| INTRUPA | IF4037 | higher capacity, long version |
| JCB | 04110147 | higher capacity, long version |
| JCB | 246262 | higher capacity, long version |
| JCB | 4110147 | higher capacity, long version |
| JLG | 91474250 | |
| JLG | 90204732 | higher capacity, long version |
| KALMAR | 1336420 | |
| KALMAR | 9234580449 | higher capacity, long version |
| KALMAR | 116893 | higher capacity, long version |
| KALMAR | T050288K100350 | |
| KALMAR | 9210970002 | |
| KALMAR | 9210280004 | higher capacity, long version |
| KOEHRING | 8320254 | |
| KOMATSU | DG4209211 | |
| LOESING | 020527 | higher capacity, long version |
| M.D.F. SARL | MDH9110 | |
| MACLEAN ENGINERING & MKTG. CO. | 1010385 | higher capacity, long version |
| MANITOU | 550145 | |
| MANITOU | 108668 | higher capacity, long version |
| MANITOWOC | 7437000873 | |
| MCCORMICK | MCD146735 | higher capacity, long version |
| NEW HOLLAND | 85806754 | |
| NEW HOLLAND | 84478016 | |
| PETTIBONE | LL16702168 | |
| PETTIBONE | LP68259X | |
| POCLAIN | Z1250578 | |
| POCLAIN | G0350595 | |
| SYSTEMS MATERIAL HANDLING | CL247050 | higher capacity, long version |
| TAMROCK | 85187419 | higher capacity, long version |
| TAMROCK | 88308129 | higher capacity, long version |
| TAYLOR | 4518019 | |
| TEREX | 7126349 | |
| TIMBERJACK | 841095100 | |
| TOTAL SOURCE | CL247050 | |
| TOWMOTOR | 973251 | |
| UNITED CENTRAL INDUSTRIAL SUPP | 323264 | higher capacity, long version |
| VAPORMATIC | CPK5593 | |
| VMC | HF552850 | |
| VMC | HF174675 | |
| VME | 11993686 | higher capacity, long version |
| VME | 119936862 | higher capacity, long version |
| VME | 11992886 | higher capacity, long version |
| VME | 2340990 | higher capacity, long version |
| VOLVO | 4720309 | higher capacity, long version |
| VOLVO | 2340990 | higher capacity, long version |
| VOLVO | 234099 | higher capacity, long version |
| VOLVO | 11992886 | higher capacity, long version |
| VOLVO | 11993686 | higher capacity, long version |
| VOLVO | 119936862 | higher capacity, long version |
| VOLVO | 247050 | higher capacity, long version |
| XTREME MANUFACTURING | 14107011 | |
| YALE | 2115522 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| CASE/CASE IH 680 | - | BACKHOE LOADER | - | CASE/CASE IH A336BDT | - |
| CASE/CASE IH 680 | - | BACKHOE LOADER | - | CASE/CASE IH A336BD | - |
| CASE/CASE IH 680CKH | - | BACKHOE LOADER | - | - 680CKH | - |
| CASE/CASE IH 780B | - | TRACTOR | - | - 780B | - |
| CASE/CASE IH 780C | - | TRACTOR | - | CUMMINS 6BT5.9 | - |
| CATERPILLAR PF300B | - | COMPACTOR | PF SERIES | CATERPILLAR 3054E | - |
| CATERPILLAR PF300C | - | COMPACTOR | PF SERIES | CATERPILLAR 3054C | - |
| CATERPILLAR PS300B | - | COMPACTOR | PS SERIES | CATERPILLAR 3054T | - |
| CATERPILLAR PS300C | - | COMPACTOR | PS SERIES | CATERPILLAR 3054C | - |
| CATERPILLAR TH103 | - | TELEHANDLER | TH SERIES | CATERPILLAR 3054T | - |
| CATERPILLAR TH62 | - | TELEHANDLER | TH SERIES | CATERPILLAR 3054T | - |
| CATERPILLAR TH63 | - | TELEHANDLER | TH SERIES | CATERPILLAR 3054T | - |
| CATERPILLAR TH82 | - | TELEHANDLER | TH SERIES | CATERPILLAR 3054T | - |
| CATERPILLAR TH83 | - | TELEHANDLER | TH SERIES | CATERPILLAR 3054T | - |
| CLAAS TARGO K50 | - | TELEHANDLER | TARGO | PERKINS 1004.40TW | - |
| CLAAS TARGO K50 | - | TELEHANDLER | TARGO | PERKINS 1004.40T | - |
| CLAAS TARGO K60 | - | TELEHANDLER | TARGO | PERKINS 1004.40T | - |
| CLAAS TARGO K60 | - | TELEHANDLER | TARGO | PERKINS 1004.40TW | - |
| CLAAS TARGO K70 | - | TELEHANDLER | TARGO | PERKINS 1004.40T | - |
| CLAAS TARGO K70 | - | TELEHANDLER | TARGO | PERKINS 1004.40TW | - |
| CLARK 35C | - | LOADER WHEELED | - | PERKINS 4.58A | - |
| CLARK 45C | - | LOADER WHEELED | - | - 45C | - |
| CLARK 45C | - | LOADER WHEELED | - | PERKINS 4.59A | - |
| CLARK DCS251 | - | FORKLIFT | DCS SERIES | - DCS251 | - |
| CLARK GCS20MB | - | FORKLIFT | - | MITSUBISHI 4G54 | - |
| CLARK GCS20MC | - | FORKLIFT | - | MITSUBISHI 4G54 | - |
| CLARK GCS20WC | - | FORKLIFT | - | WAUKESHA D176 | - |
| CLARK GCS30MB | - | FORKLIFT | - | MITSUBISHI 4G54 | - |
| CLARK GCS30WC | - | FORKLIFT | - | WAUKESHA D176 | - |
| GEHL RS5 | - | TELEHANDLER | - | JOHN DEERE 4045 | - |
| GEHL RS5-34 | - | TELEHANDLER | - | JOHN DEERE 4045 | - |
| GEHL RS6 | - | TELEHANDLER | - | JOHN DEERE 4045 | - |
| GEHL RS6-42 | - | TELEHANDLER | - | JOHN DEERE 4045 | - |
| GEHL RS8 | - | TELEHANDLER | - | JOHN DEERE 4045 | - |
| GEHL RS8-4244 | - | HANDLER | - | JOHN DEERE 4045 | - |
| GRADALL 532 | - | MATERIAL HANDLER | - | - 532 | - |
| GRADALL 534B6 | - | MATERIAL HANDLER | - | - 534B6 | - |
| GRADALL 534B8 | - | MATERIAL HANDLER | - | - 534B8 | - |
| GRADALL 534B9 | - | MATERIAL HANDLER | - | - 534B9 | - |
| GRADALL 544B | - | TELEHANDLER | - | - 544B | - |
| GRADALL G9-43 | - | MATERIAL HANDLER | - | - G9-43 | - |
| GRADALL G9-43A | - | MATERIAL HANDLER | - | - G9-43A | - |
| HITACHI FR100 | - | LOADER WHEELED | FR SERIES | - FR100 | - |
| HSM 704 D | - | TRACTOR | - | IVECO - | - |
| MANITOU MC40PS | - | FORKLIFT | MC SERIES | - MC40PS | - |
| MANITOU MC50PS | - | FORKLIFT | MC SERIES | - MC50PS | - |
| MANITOU MC60TPS | - | FORKLIFT | MC SERIES | - MC60TPS | - |
| MANITOU MT430CPC | - | TELEHANDLER | MT SERIES | - MT430CPC | - |
| MANITOU MT430CPDS | - | TELEHANDLER | MT SERIES | - MT430CPDS | - |
| MANITOU MT430CPL | - | TELEHANDLER | MT SERIES | - MT430CPL | - |
| MANITOU MT430CPS | - | TELEHANDLER | MT SERIES | - MT430CPS | - |
| MANITOU MT430DCP | - | TELEHANDLER | MT SERIES | - MT430DCP | - |
| MANITOU MT430SCP | - | TELEHANDLER | MT SERIES | - MT430SCP | - |
| MANITOU MT450CP | - | TELEHANDLER | MT SERIES | - MT450CP | - |
