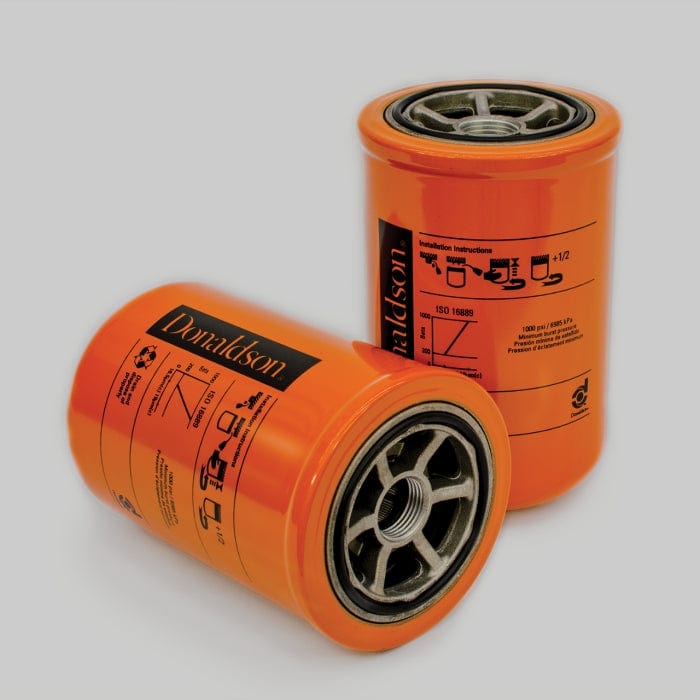

Hydraulic Filter, Spin-On - Donaldson P173738

Hydraulic Filter, Spin-On - Donaldson P173738

£64.30
£64.30
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P173738

Hydraulic Filter, Spin-On
View full details

Specifications

Attributes

  • Outer Diameter: 97 mm (3.82 inch)
  • Thread Size: 7/8-14 UN
  • Length: 151.64 mm (5.97 inch)
  • Gasket OD: 70.15 mm (2.76 inch)
  • Gasket ID: 63 mm (2.48 inch)
  • Efficiency Beta 1000: 23 micron
  • Bypass Valve: Yes
  • Bypass Valve Setting LR: 3.5 bar (51 psi)
  • Style: Spin-On
  • Media Type: Synthetic

Packaged Dimensions

  • Packaged Length: 0.36 FT
  • Packaged Width: 0.36 FT
  • Packaged Height: 0.53 FT
  • Packaged Weight: 0.917 kg (2.02 lb)
  • Packaged Volume: 0.002 m3 (0.07 ft3)

Other Information

  • Country of Origin: Mexico
  • NMFC Code: 069100-05
  • HTS Code: 8421298090
  • UPC Code: 742330024232

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
CLARK 2782050
CLARK 2792962
CLARK,J.L. 2791199
CLARK,J.L. 2792962
INTRUPA 83284
SAMSUNG 603210520
SYSTEMS MATERIAL HANDLING CL2799807
SYSTEMS MATERIAL HANDLING TY005910258781

Equipment Compatibility

Equipment Year Equipment Type Equipment Options Engine Engine Option
CLARK CMP30 - FORKLIFT CMP SERIES - CMP30 -
CLARK GCS15-17 - FORKLIFT - - GCS15-17 -
CLARK GPS20WC - FORKLIFT - WAUKESHA D176 -
CLARK GPS30WC - FORKLIFT - WAUKESHA D176 -
