• Donaldson Hydraulic Filter, Spin-On - Donaldson P167945
1 1

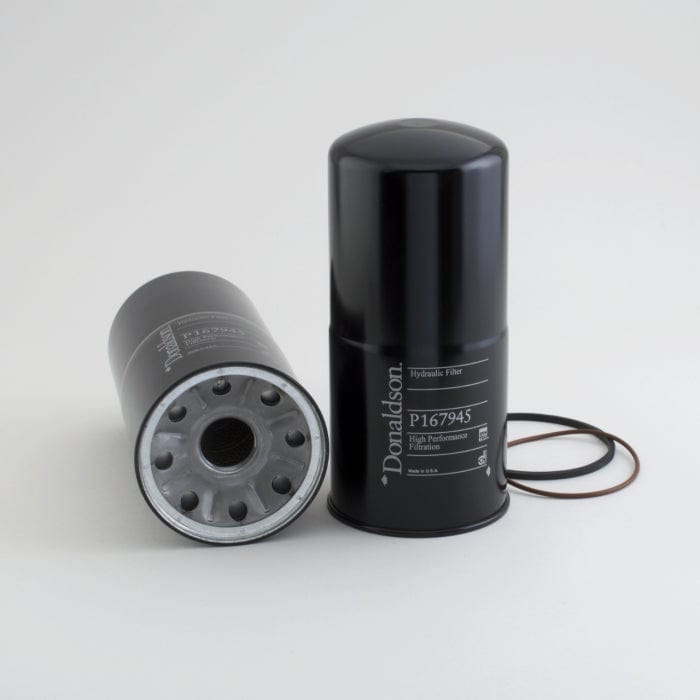

Hydraulic Filter, Spin-On - Donaldson P167945

Hydraulic Filter, Spin-On - Donaldson P167945

£79.51
£79.51
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P167945

Hydraulic Filter, Spin-On
Outer Diameter 5.04 inch (128 mm)
Thread Size 1 1/2-16 UN
Length 10.66 inch (270.76 mm)
Gasket OD 5.04 inch (128 mm)
Gasket ID 4.72 inch (120 mm)
Efficiency Beta 1000 13 micron
Style Spin-On
Series W023, HBK05, SP50/60, SP80/90, SP100/120
Media Type Synthetic
View full details

Specifications

Attributes

  • Outer Diameter: 128 mm (5.04 inch)
  • Thread Size: 1 1/2-16 UN
  • Length: 270.76 mm (10.66 inch)
  • Gasket OD: 128 mm (5.04 inch)
  • Gasket ID: 120 mm (4.72 inch)
  • Efficiency Beta 1000: 13 micron
  • Style: Spin-On
  • Series: W023
  • HBK05:
  • SP50/60:
  • SP80/90:
  • SP100/120:
  • Media Type: Synthetic

Packaged Dimensions

  • Packaged Length: 0.133 m (5.30 inch)
  • Packaged Width: 0.135 m (5.40 inch)
  • Packaged Height: 0.290 m (11.60 inch)
  • Packaged Weight: 1.655 kg (3.65 lb)
  • Packaged Volume: 0.005 m3 (0.19 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-09
  • HTS Code: 8421298090
  • UPC Code: 742330018842

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
BOMAG 853531229
CASE/CASE IH NP167945
CATERPILLAR 8T7474
CMI 285011
EATON 5002514
EATON V0211B2R10
VICKERS V0211V2V10
