• Donaldson Hydraulic Filter, Spin-On - Donaldson P167944
1 1

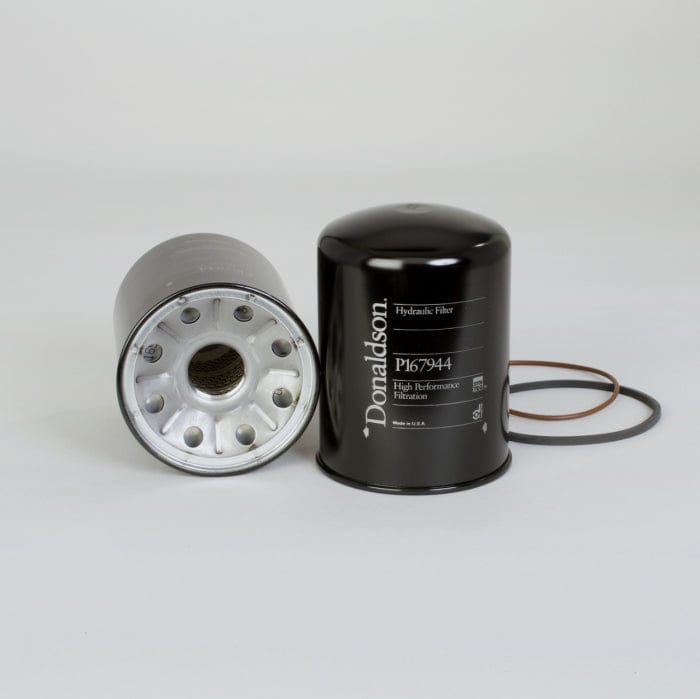

Hydraulic Filter, Spin-On - Donaldson P167944

Hydraulic Filter, Spin-On - Donaldson P167944

£68.75
£68.75
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P167944

Hydraulic Filter, Spin-On
Outer Diameter 4.87 inch (123.69 mm)
Thread Size 1 1/2-16 UN
Length 6.66 inch (169.16 mm)
Gasket OD 5.04 inch (128 mm)
Gasket ID 4.72 inch (120 mm)
Efficiency Beta 1000 13 micron
Style Spin-On
Series W023, HBK05, SP50/60, SP80/90, SP100/120
Media Type Synthetic
View full details

Specifications

Attributes

  • Outer Diameter: 123.69 mm (4.87 inch)
  • Thread Size: 1 1/2-16 UN
  • Length: 169.16 mm (6.66 inch)
  • Gasket OD: 128 mm (5.04 inch)
  • Gasket ID: 120 mm (4.72 inch)
  • Efficiency Beta 1000: 13 micron
  • Style: Spin-On
  • Series: W023
  • HBK05:
  • SP50/60:
  • SP80/90:
  • SP100/120:
  • Media Type: Synthetic

Packaged Dimensions

  • Packaged Length: 0.150 m (6.00 inch)
  • Packaged Width: 0.143 m (5.70 inch)
  • Packaged Height: 0.180 m (7.20 inch)
  • Packaged Weight: 1.249 kg (2.75 lb)
  • Packaged Volume: 0.004 m3 (0.14 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-10
  • HTS Code: 8421298090
  • UPC Code: 742330018835

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
EATON 5002510
JOHN DEERE LVA11522
JOHN DEERE LVA13038
VICKERS V0211V1V10

Equipment Compatibility

Equipment Year Equipment Type Equipment Options Engine Engine Option
JOHN DEERE 4120 - TRACTOR 4000 SERIES JOHN DEERE 4024T -
JOHN DEERE 4210 - TRACTOR 4000 SERIES YANMAR 3TNE82 -
JOHN DEERE 4310 - TRACTOR 4000 SERIES YANMAR 3TNE84 -
JOHN DEERE 4320 - TRACTOR 4000 SERIES JOHN DEERE 4024T -
JOHN DEERE 4410 - TRACTOR 4000 SERIES YANMAR 3TNE88 -
JOHN DEERE 4510 - TRACTOR 4000 SERIES YANMAR 4TNE84 -
JOHN DEERE 4520 - TRACTOR 4000 SERIES JOHN DEERE 4024T -
JOHN DEERE 4610 - TRACTOR 4000 SERIES YANMAR 4TNE84 -
JOHN DEERE 4710 - TRACTOR 4000 SERIES YANMAR 4TNE84 -
JOHN DEERE 4710 - TRACTOR 4000 SERIES YANMAR 4TNE88 -
JOHN DEERE 4720 - TRACTOR 4000 SERIES JOHN DEERE 4024T -
