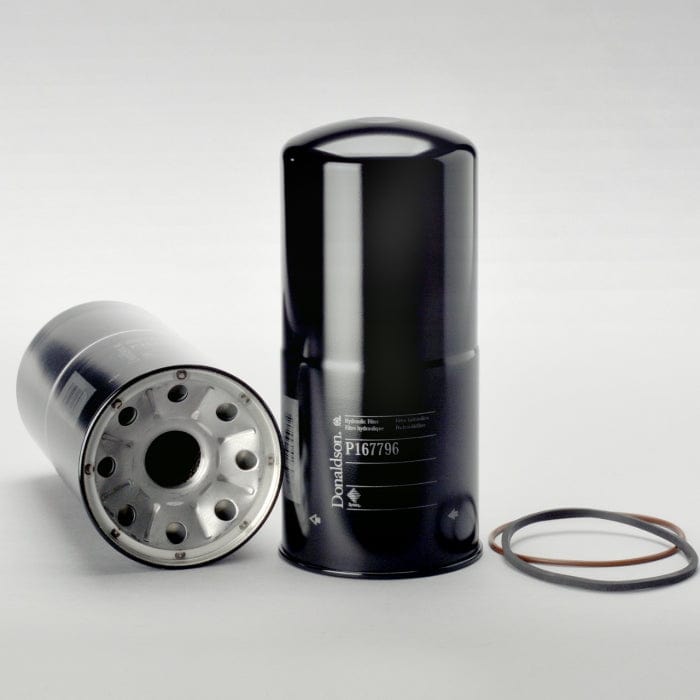

Hydraulic Filter, Spin-On - Donaldson P167796

Hydraulic Filter, Spin-On - Donaldson P167796

£114.55
£114.55
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P167796

Hydraulic Filter, Spin-On
View full details

Specifications

Attributes

  • Outer Diameter: 129 mm (5.08 inch)
  • Thread Size: 1 1/2-16 UN
  • Length: 270.76 mm (10.66 inch)
  • Gasket OD: 128 mm (5.04 inch)
  • Gasket ID: 120 mm (4.72 inch)
  • Efficiency Beta 1000: 4 micron
  • Style: Spin-On
  • Series: W023
  • HBK05:
  • SP50/60:
  • SP80/90:
  • SP100/120:
  • FPK04:
  • Media Type: Synthetic

Packaged Dimensions

  • Packaged Length: 0.138 m (5.50 inch)
  • Packaged Width: 0.135 m (5.40 inch)
  • Packaged Height: 0.288 m (11.50 inch)
  • Packaged Weight: 1.653 kg (3.64 lb)
  • Packaged Volume: 0.006 m3 (0.20 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-05
  • HTS Code: 8421298090
  • UPC Code: 742330018576

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
LENZ CPL128203SYN50
SUNSOURCE 1983188
TRICO MANUFACTURING 36972
VERMEER 296387479 10.7\ Length
VICKERS V0211V2V03
VMC HF167796

Equipment Compatibility

Equipment Year Equipment Type Equipment Options Engine Engine Option
CATERPILLAR AP800B - PAVER AP SERIES PERKINS T4.236 -
CATERPILLAR CP433C - COMPACTOR CP SERIES CATERPILLAR 3054T -
CATERPILLAR CP533C - COMPACTOR CP SERIES CATERPILLAR 3116T -
CATERPILLAR CP563C - COMPACTOR CP SERIES CATERPILLAR 3116T -
CATERPILLAR CS431C - COMPACTOR CS SERIES CATERPILLAR 3054T -
