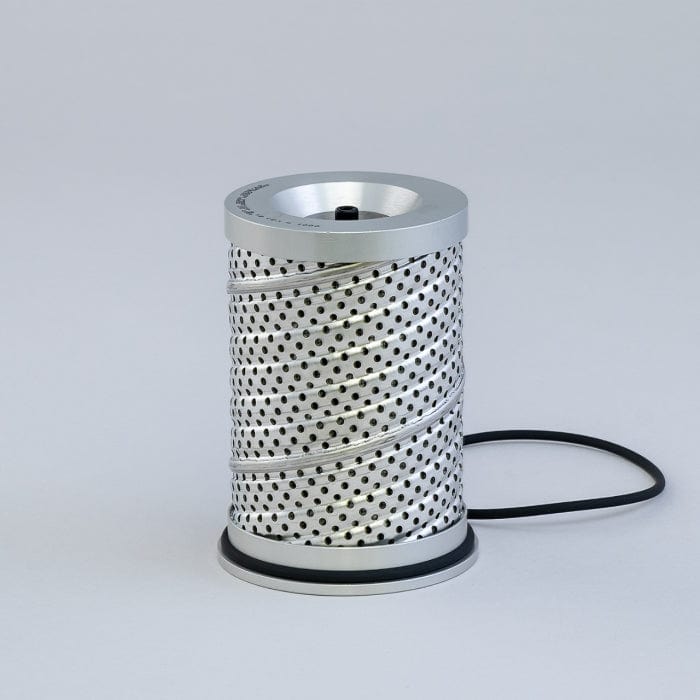

Hydraulic Filter, Cartridge Dt - Donaldson P580127

Hydraulic Filter, Cartridge Dt - Donaldson P580127

£115.46
£115.46
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P580127

Hydraulic Filter, Cartridge Dt
Seal Material Viton
Outer Diameter 3.42 inch (86.87 mm)
Length 4.74 inch (120.4 mm)
Efficiency Beta 1000 12 micron
Bypass Valve Yes
Bypass Valve Setting LR 25 psi (1.72 bar)
Collapse Burst 149 psi (10.3 bar)
Maximum Operating Temperature 250 °F (121 °C)
Media Brand DT High-Performance
View full details

Specifications

Attributes

  • Seal Material: Viton
  • Outer Diameter: 86.87 mm (3.42 inch)
  • Length: 120.4 mm (4.74 inch)
  • Efficiency Beta 1000: 12 micron
  • Bypass Valve: Yes
  • Bypass Valve Setting LR: 1.72 bar (25 psi)
  • Collapse Burst: 10.3 bar (149 psi)
  • Maximum Operating Temperature: 121 °C (250 °F)
  • Media Brand: DT High-Performance

Packaged Dimensions

  • Packaged Length: 0.30 FT
  • Packaged Width: 0.29 FT
  • Packaged Height: 0.51 FT
  • Packaged Weight: 0.456 kg (1.01 lb)
  • Packaged Volume: 0.001 m3 (0.04 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-07
  • HTS Code: 8421298090
  • UPC Code: 742330231661
