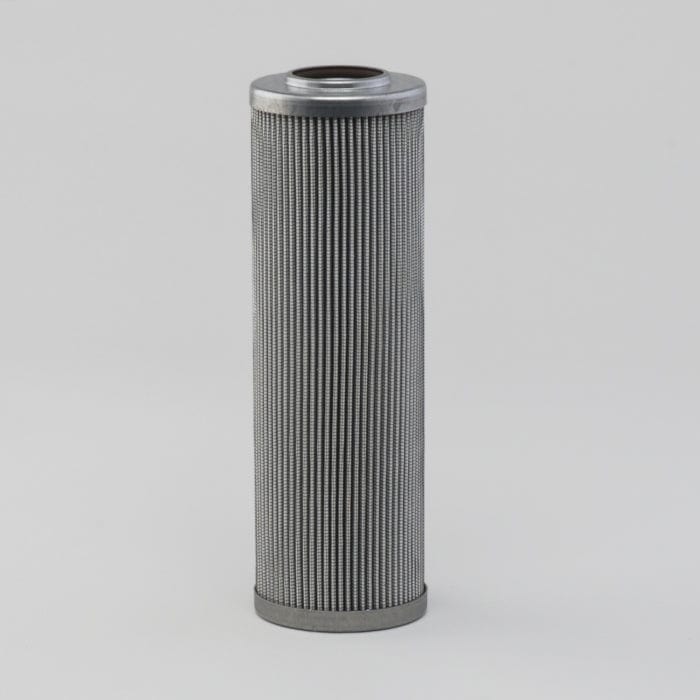

Hydraulic Filter, Cartridge Dt - Donaldson P571376

Hydraulic Filter, Cartridge Dt - Donaldson P571376

£61.79
£61.79
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P571376

Hydraulic Filter, Cartridge Dt
Seal Material Viton
Outer Diameter 3.07 inch (78 mm)
Inner Diameter 1.59 inch (40.3 mm)
Overall Length 9.84 inch (249.9 mm)
Efficiency Beta 1000 23 micron
Collapse Burst 300 psi (20.7 bar)
Style Cartridge
Brand DT High-Performance
Media Type Synthetic
View full details

Specifications

Attributes

  • Seal Material: Viton
  • Outer Diameter: 78.7 mm (3.10 inch)
  • Inner Diameter: 40.8 mm (1.61 inch)
  • Length: 247.9 mm (9.76 inch)
  • Efficiency Beta 1000: 25 micron
  • Collapse Burst: 31 bar (450 psi)
  • Style: Cartridge
  • Brand: DT High-Performance
  • Media Type: Synthetic

Packaged Dimensions

  • Packaged Length: 0.099 m (3.94 inch)
  • Packaged Width: 0.089 m (3.54 inch)
  • Packaged Height: 0.345 m (13.78 inch)
  • Packaged Weight: 0.681 kg (1.50 lb)
  • Packaged Volume: 0.003 m3 (0.11 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-05
  • HTS Code: 8421298090
  • UPC Code: 742330955147

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
ARGO 7235637
ARGO 7235638
BOSCH-REXROTH 20250H20XLA000P
BOSCH-REXROTH 20250H20SLA000P
