• Donaldson Hydraulic Filter, Cartridge Dt - Donaldson P571243
1 1

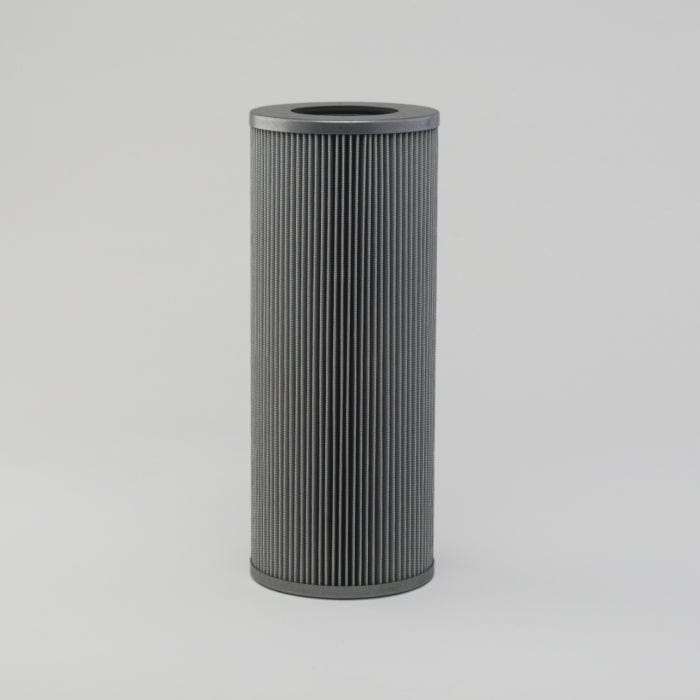

Hydraulic Filter, Cartridge Dt - Donaldson P571243

Hydraulic Filter, Cartridge Dt - Donaldson P571243

£198.71
£198.71
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P571243

Hydraulic Filter, Cartridge Dt
Outer Diameter 6.24 inch (158.5 mm)
Inner Diameter 3.56 inch (90.3 mm)
Length 15.74 inch (399.8 mm)
Gasket ID 3.49 inch (88.7 mm)
Efficiency Beta 1000 11 micron
Collapse Burst 225 psi (15.5 bar)
Media Brand DT High-Performance
Media Type Synthetic
View full details

Specifications

Attributes

  • Outer Diameter: 158.5 mm (6.24 inch)
  • Inner Diameter: 90.3 mm (3.56 inch)
  • Length: 399.8 mm (15.74 inch)
  • Gasket ID: 88.7 mm (3.49 inch)
  • Efficiency Beta 1000: 11 micron
  • Collapse Burst: 15.5 bar (225 psi)
  • Media Brand: DT High-Performance
  • Media Type: Synthetic

Packaged Dimensions

  • Packaged Length: 0.165 m (6.60 inch)
  • Packaged Width: 0.165 m (6.60 inch)
  • Packaged Height: 0.492 m (19.68 inch)
  • Packaged Weight: 2.502 kg (5.51 lb)
  • Packaged Volume: 0.014 m3 (0.50 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-06
  • HTS Code: 8421298090
  • UPC Code: 742330953624

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
BOSCH-REXROTH 11000H10XLA000P
