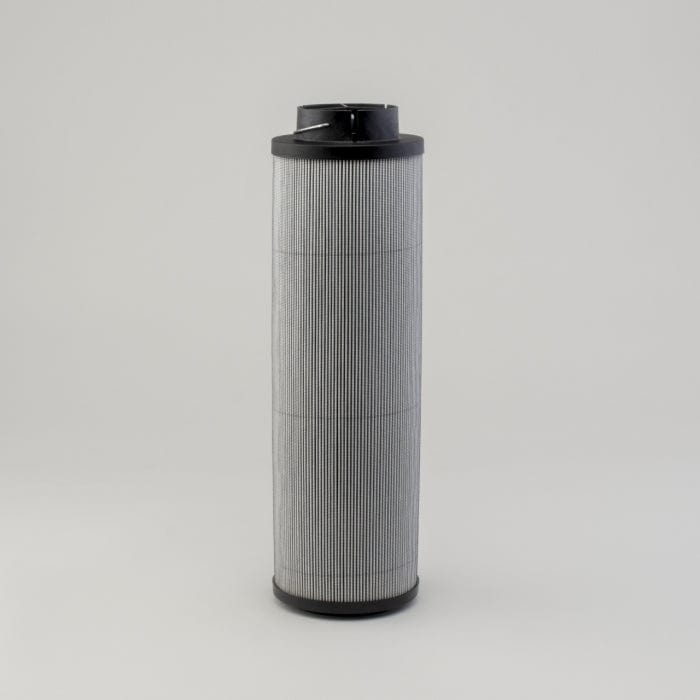

Hydraulic Filter, Cartridge Dt - Donaldson P570861

Hydraulic Filter, Cartridge Dt - Donaldson P570861

£505.76
£505.76
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P570861

Hydraulic Filter, Cartridge Dt
View full details

Specifications

Attributes

  • Outer Diameter: 145.22 mm (5.72 inch)
  • Inner Diameter: 95.76 mm (3.77 inch)
  • Length: 437.64 mm (17.23 inch)
  • Overall Length: 481.6 mm (18.96 inch)
  • Efficiency Beta 1000: 11 micron
  • Bypass Valve: Yes
  • Bypass Valve Setting LR: 4 bar (58 psi)
  • Collapse Burst: 30 bar (435 psi)
  • Style: Cartridge
  • Brand: DT High-Performance
  • Media Type: Synthetic

Packaged Dimensions

  • Packaged Length: 0.165 m (6.60 inch)
  • Packaged Width: 0.165 m (6.60 inch)
  • Packaged Height: 0.493 m (19.70 inch)
  • Packaged Weight: 3.292 kg (7.25 lb)
  • Packaged Volume: 0.014 m3 (0.50 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-06
  • HTS Code: 8421298090
  • UPC Code: 742330205136

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
GENERAL ELECTRIC 107W2148P001
