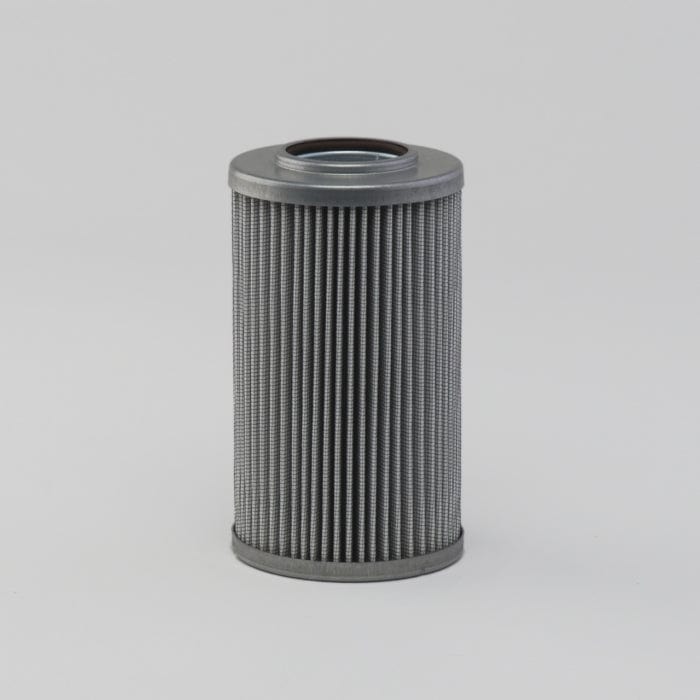

Hydraulic Filter, Cartridge Dt - Donaldson P568714

Hydraulic Filter, Cartridge Dt - Donaldson P568714

£104.84
£104.84
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P568714

Hydraulic Filter, Cartridge Dt
View full details

Specifications

Attributes

  • Seal Material: Viton
  • Outer Diameter: 90.4 mm (3.56 inch)
  • Inner Diameter: 48.2 mm (1.90 inch)
  • Overall Length: 255 mm (10.04 inch)
  • Efficiency Beta 1000: 8 micron
  • Collapse Burst: 10.3 bar (149 psi)
  • Style: Cartridge
  • Brand: DT High-Performance
  • Media Type: Synthetic

Packaged Dimensions

  • Packaged Length: 0.108 m (4.30 inch)
  • Packaged Width: 0.108 m (4.30 inch)
  • Packaged Height: 0.343 m (13.70 inch)
  • Packaged Weight: 0.742 kg (1.64 lb)
  • Packaged Volume: 0.004 m3 (0.15 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-06
  • HTS Code: 8421298090
  • UPC Code: 742330191422

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
MP FILTRI MP4168
PTI H0500D006EV
