• Donaldson Hydraulic Filter, Cartridge Dt - Donaldson P567075
1 1

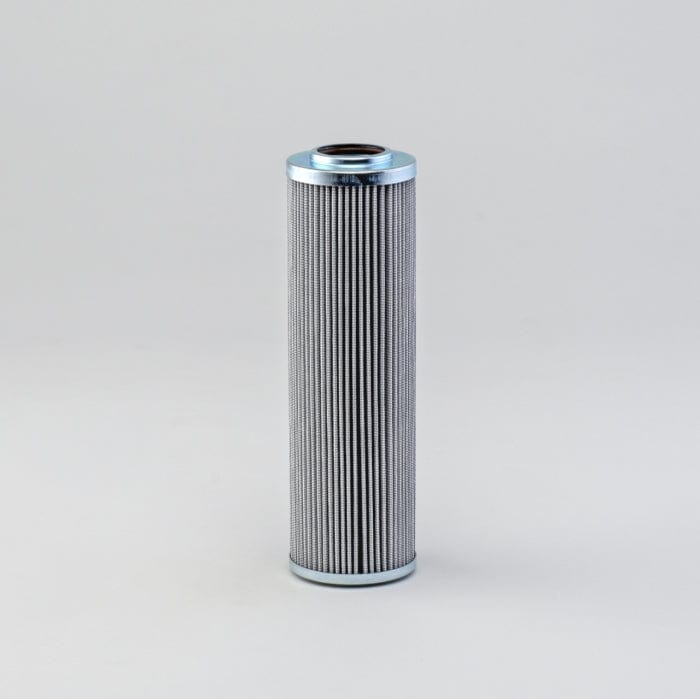

Hydraulic Filter, Cartridge Dt - Donaldson P567075

Hydraulic Filter, Cartridge Dt - Donaldson P567075

£61.99
£61.99
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P567075

Hydraulic Filter, Cartridge Dt
Outer Diameter 2.87 inch (73 mm)
Inner Diameter 1.51 inch (38.28 mm)
Overall Length 9.56 inch (242.7 mm)
Efficiency Beta 1000 14 micron
Collapse Burst 149 psi (10.3 bar)
Style Cartridge
Brand DT High-Performance
Media Type Synthetic
Primary Application SCHROEDER 9VZ10
View full details

Specifications

Attributes

  • Outer Diameter: 73 mm (2.87 inch)
  • Inner Diameter: 38.28 mm (1.51 inch)
  • Overall Length: 242.7 mm (9.56 inch)
  • Efficiency Beta 1000: 14 micron
  • Collapse Burst: 10.3 bar (149 psi)
  • Style: Cartridge
  • Brand: DT High-Performance
  • Media Type: Synthetic
  • Primary Application: SCHROEDER 9VZ10

Packaged Dimensions

  • Packaged Length: 0.108 m (4.33 inch)
  • Packaged Width: 0.108 m (4.33 inch)
  • Packaged Height: 0.256 m (10.24 inch)
  • Packaged Weight: 0.454 kg (1.00 lb)
  • Packaged Volume: 0.003 m3 (0.11 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-05
  • HTS Code: 8421298090
  • UPC Code: 742330964033

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
MCNEILUS LBHYF20033
MCNEILUS 7628588
MCNEILUS 1542560
MCNEILUS HYF20033
MCNEILUS L2HYF20033
MCNEILUS 1108710
WASTEBUILT M81542560
WASTEBUILT M81108710
