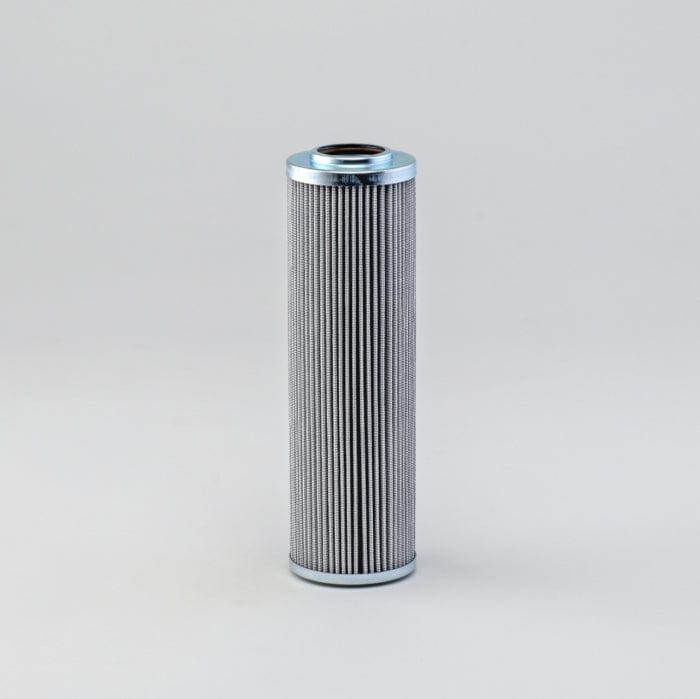

Hydraulic Filter, Cartridge Dt - Donaldson P567074

Hydraulic Filter, Cartridge Dt - Donaldson P567074

£136.03
£136.03
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P567074

Hydraulic Filter, Cartridge Dt
Outer Diameter 2.87 inch (73 mm)
Inner Diameter 1.51 inch (38.28 mm)
Length 9.30 inch (236.25 mm)
Overall Length 9.56 inch (242.7 mm)
Efficiency Beta 1000 8 micron
Collapse Burst 149 psi (10.3 bar)
Style Cartridge
Brand DT High-Performance
Media Type Synthetic
View full details

Specifications

Attributes

  • Outer Diameter: 73 mm (2.87 inch)
  • Inner Diameter: 38.28 mm (1.51 inch)
  • Length: 236.25 mm (9.30 inch)
  • Overall Length: 242.7 mm (9.56 inch)
  • Efficiency Beta 1000: 8 micron
  • Collapse Burst: 10.3 bar (149 psi)
  • Style: Cartridge
  • Brand: DT High-Performance
  • Media Type: Synthetic

Packaged Dimensions

  • Packaged Length: 0.108 m (4.33 inch)
  • Packaged Width: 0.108 m (4.33 inch)
  • Packaged Height: 0.256 m (10.24 inch)
  • Packaged Weight: 0.454 kg (1.00 lb)
  • Packaged Volume: 0.003 m3 (0.11 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-05
  • HTS Code: 8421298090
  • UPC Code: 742330953006

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
DEMAG 429475
