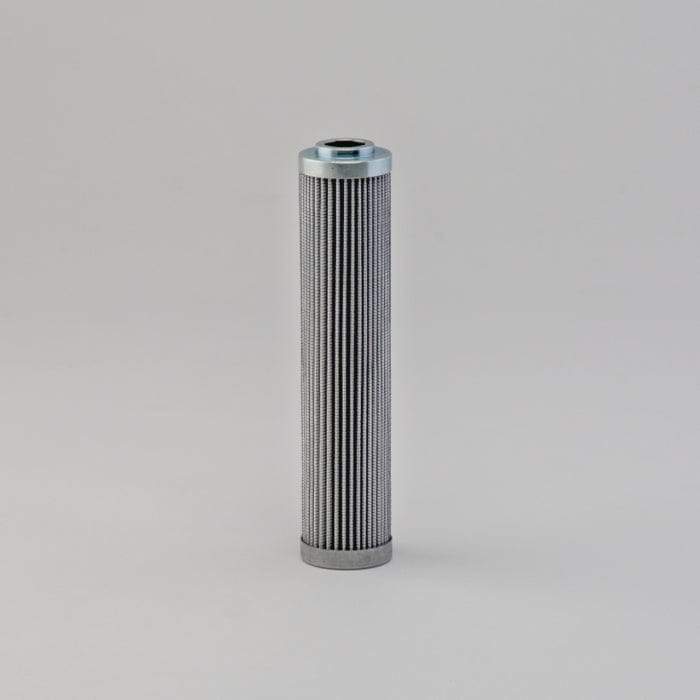

Hydraulic Filter, Cartridge Dt - Donaldson P567070

Hydraulic Filter, Cartridge Dt - Donaldson P567070

£69.55
£69.55
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P567070

Hydraulic Filter, Cartridge Dt
Seal Material Viton
Outer Diameter 1.75 inch (44.4 mm)
Inner Diameter 0.78 inch (19.7 mm)
Gasket OD 0.94 inch (23.96 mm)
Gasket ID 0.74 inch (18.72 mm)
Overall Length 8.01 inch (203.56 mm)
Efficiency Beta 1000 8 micron
Collapse Burst 149 psi (10.3 bar)
Style Cartridge
Brand DT High-Performance
Media Type Synthetic
View full details

Specifications

Attributes

  • Seal Material: Viton
  • Outer Diameter: 44.4 mm (1.75 inch)
  • Inner Diameter: 19.7 mm (0.78 inch)
  • Gasket OD: 23.96 mm (0.94 inch)
  • Gasket ID: 18.72 mm (0.74 inch)
  • Overall Length: 203.56 mm (8.01 inch)
  • Efficiency Beta 1000: 8 micron
  • Collapse Burst: 10.3 bar (149 psi)
  • Style: Cartridge
  • Brand: DT High-Performance
  • Media Type: Synthetic

Packaged Dimensions

  • Packaged Length: 0.18 FT
  • Packaged Width: 0.18 FT
  • Packaged Height: 0.86 FT
  • Packaged Weight: 0.227 kg (0.50 lb)
  • Packaged Volume: 0.001 m3 (0.03 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-05
  • HTS Code: 8421298090
  • UPC Code: 742330962855
