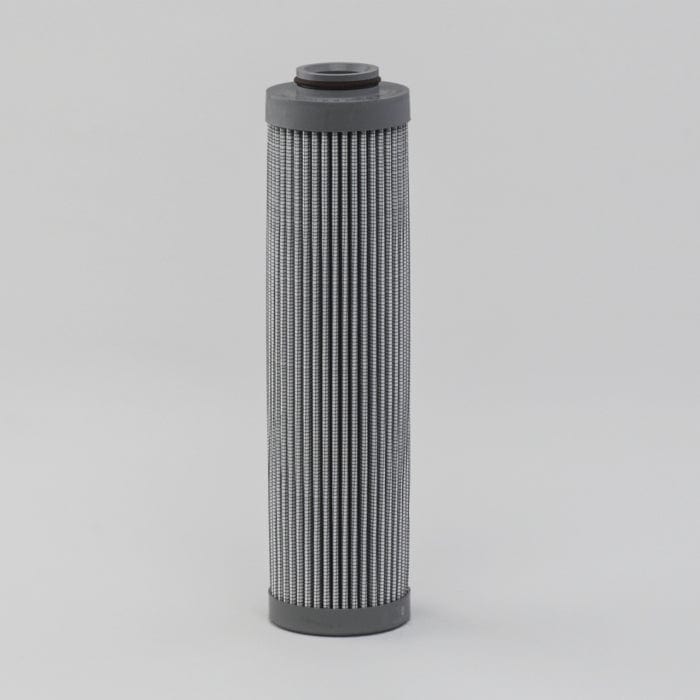

Hydraulic Filter, Cartridge Dt - Donaldson P567048

Hydraulic Filter, Cartridge Dt - Donaldson P567048

£68.84
£68.84
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P567048

Hydraulic Filter, Cartridge Dt
View full details

Specifications

Attributes

  • Seal Material: Viton
  • Outer Diameter: 61.98 mm (2.44 inch)
  • Inner Diameter: 25.91 mm (1.02 inch)
  • Length: 234.95 mm (9.25 inch)
  • Outlet Diameter: 25.91 mm (1.02 inch)
  • Overall Length: 244.6 mm (9.63 inch)
  • Efficiency Beta 1000: 23 micron
  • Collapse Burst: 10.3 bar (149 psi)
  • Style: Cartridge
  • Brand: DT High-Performance
  • Media Type: Synthetic

Packaged Dimensions

  • Packaged Length: 0.30 FT
  • Packaged Width: 0.30 FT
  • Packaged Height: 0.84 FT
  • Packaged Weight: 0.377 kg (0.83 lb)
  • Packaged Volume: 0.002 m3 (0.08 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-06
  • HTS Code: 8421298090
  • UPC Code: 742330190142

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
HEIL 757051
MP FILTRI MP3828
