• Donaldson Hydraulic Filter, Cartridge Dt - Donaldson P567042
1 1

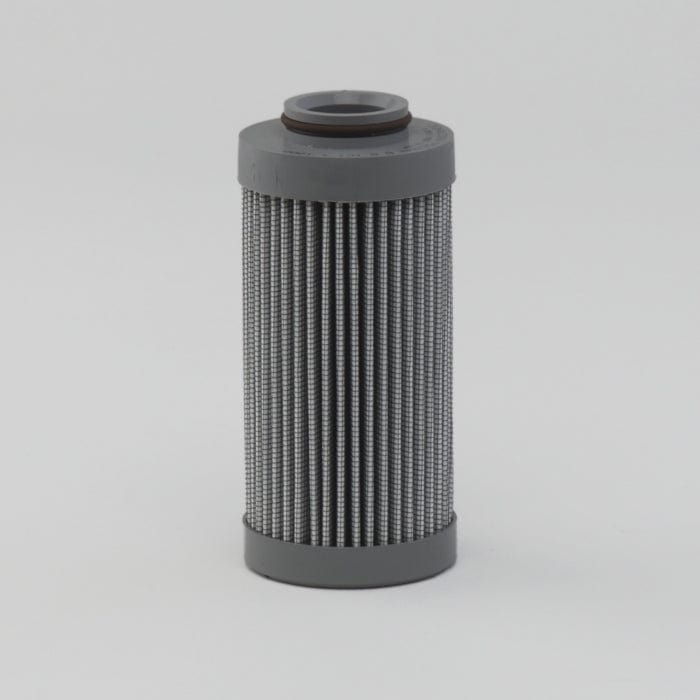

Hydraulic Filter, Cartridge Dt - Donaldson P567042

Hydraulic Filter, Cartridge Dt - Donaldson P567042

£80.73
£80.73
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P567042

Hydraulic Filter, Cartridge Dt
View full details

Specifications

Attributes

  • Seal Material: Viton
  • Outer Diameter: 61.98 mm (2.44 inch)
  • Inner Diameter: 25.91 mm (1.02 inch)
  • Length: 127 mm (5.00 inch)
  • Outlet Diameter: 25.91 mm (1.02 inch)
  • Overall Length: 136.65 mm (5.38 inch)
  • Efficiency Beta 1000: 8 micron
  • Collapse Burst: 10.3 bar (149 psi)
  • Style: Cartridge
  • Brand: DT High-Performance
  • Media Type: Synthetic

Packaged Dimensions

  • Packaged Length: 0.099 m (3.94 inch)
  • Packaged Width: 0.099 m (3.94 inch)
  • Packaged Height: 0.236 m (9.45 inch)
  • Packaged Weight: 0.241 kg (0.53 lb)
  • Packaged Volume: 0.002 m3 (0.08 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-06
  • HTS Code: 8421298090
  • UPC Code: 742330190081

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
BEHRINGER BE170506AV
BEHRINGER BE9326239
MP FILTRI MP3809
MP FILTRI MP3808
VICKERS V30PB1C05
VICKERS V30PVQC05
