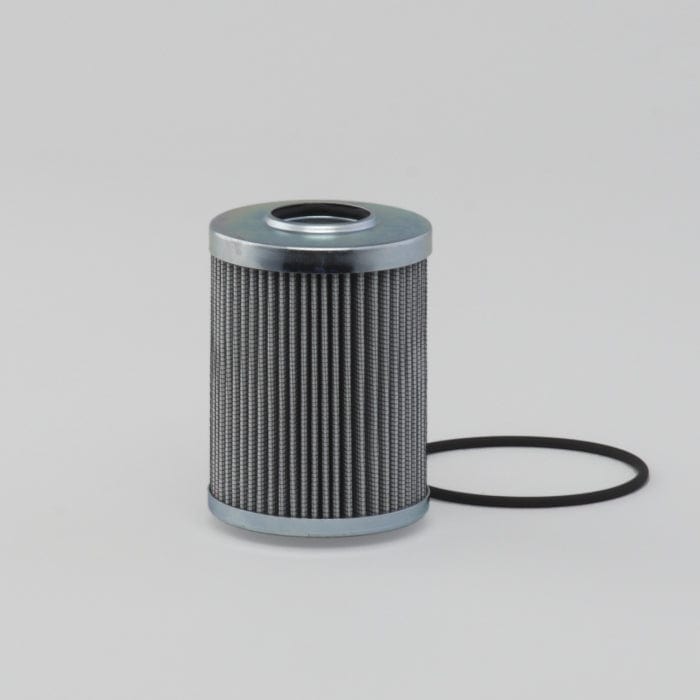

Hydraulic Filter, Cartridge Dt - Donaldson P567016

Hydraulic Filter, Cartridge Dt - Donaldson P567016

£45.03
£45.03
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P567016

Hydraulic Filter, Cartridge Dt
Seal Material Viton
Outer Diameter 2.90 inch (73.66 mm)
Inner Diameter 1.24 inch (31.62 mm)
Overall Length 4.10 inch (104.1 mm)
Efficiency Beta 1000 23 micron
Collapse Burst 450 psi (31 bar)
Style Cartridge
Brand DT High-Performance
Media Type Synthetic
View full details

Specifications

Attributes

  • Seal Material: Viton
  • Outer Diameter: 73.66 mm (2.90 inch)
  • Inner Diameter: 31.62 mm (1.24 inch)
  • Overall Length: 104.1 mm (4.10 inch)
  • Efficiency Beta 1000: 23 micron
  • Collapse Burst: 31 bar (450 psi)
  • Style: Cartridge
  • Brand: DT High-Performance
  • Media Type: Synthetic

Packaged Dimensions

  • Packaged Length: 0.085 m (3.40 inch)
  • Packaged Width: 0.085 m (3.40 inch)
  • Packaged Height: 0.150 m (6.00 inch)
  • Packaged Weight: 0.313 kg (0.69 lb)
  • Packaged Volume: 0.001 m3 (0.04 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-06
  • HTS Code: 8421298090
  • UPC Code: 742330198070

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
BEHRINGER BE270425A
BEHRINGER BE270425AV
CATERPILLAR 3i1957
DENISON DE0272B1C20
HYDEMA 360639
PTI F270015JFB
VICKERS V0272B1C20
