• Donaldson Hydraulic Filter, Cartridge Dt - Donaldson P567004
1 1

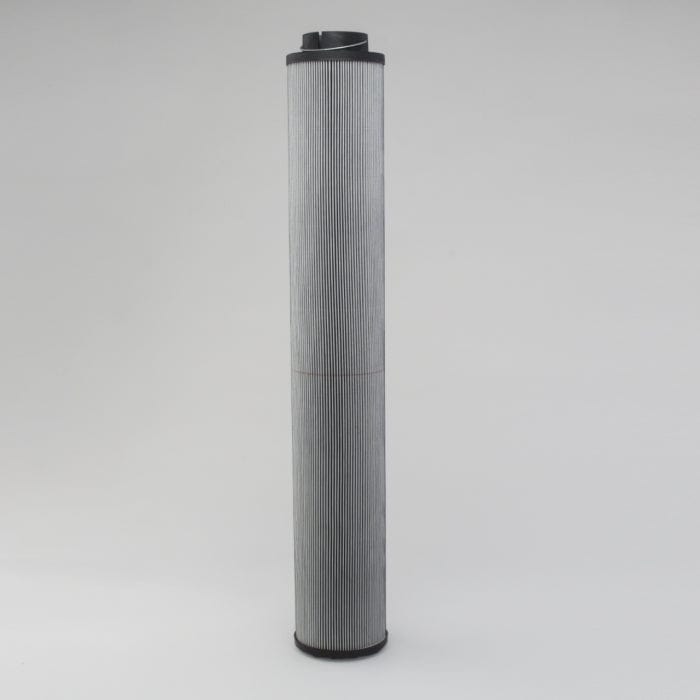

Hydraulic Filter, Cartridge Dt - Donaldson P567004

Hydraulic Filter, Cartridge Dt - Donaldson P567004

£321.36
£321.36
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P567004

Hydraulic Filter, Cartridge Dt
View full details

Specifications

Attributes

  • Outer Diameter: 145.2 mm (5.72 inch)
  • Inner Diameter: 96 mm (3.78 inch)
  • Length: 919 mm (36.18 inch)
  • Gasket ID: 94.8 mm (3.73 inch)
  • Efficiency Beta 1000: 25 micron
  • Bypass Valve: Yes
  • Bypass Valve Setting LR: 3 bar (44 psi)
  • Collapse Burst: 20 bar (290 psi)
  • Media Brand: DT High-Performance
  • Media Type: Synthetic

Packaged Dimensions

  • Packaged Length: 0.178 m (7.10 inch)
  • Packaged Width: 0.178 m (7.10 inch)
  • Packaged Height: 1.008 m (40.30 inch)
  • Packaged Weight: 7.101 kg (15.64 lb)
  • Packaged Volume: 0.033 m3 (1.18 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-06
  • HTS Code: 8421298090
  • UPC Code: 742330190548

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
DENISON DE2602V8C20
MP FILTRI MP5072
PTI H2600R025EB3V
