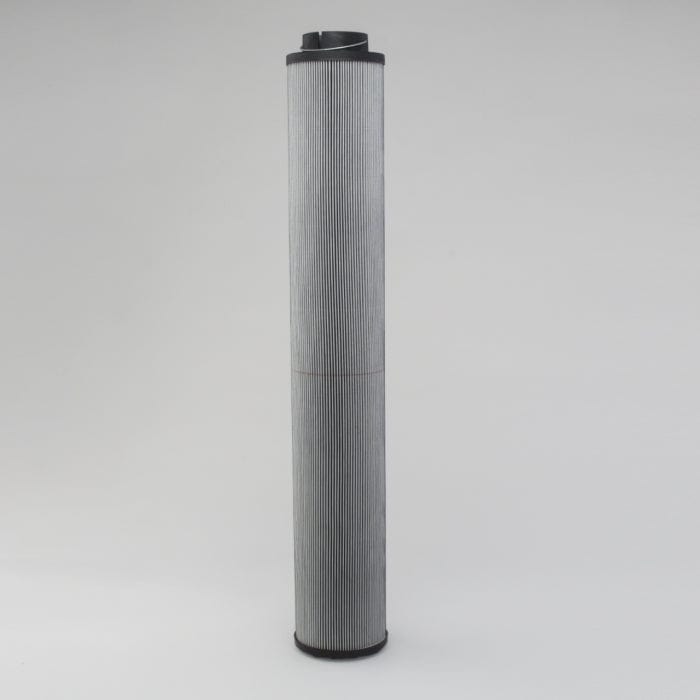

Hydraulic Filter, Cartridge Dt - Donaldson P567002

Hydraulic Filter, Cartridge Dt - Donaldson P567002

£331.07
£331.07
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P567002

Hydraulic Filter, Cartridge Dt
Outer Diameter 5.72 inch (145.2 mm)
Inner Diameter 3.78 inch (96 mm)
Length 36.18 inch (919 mm)
Gasket ID 3.73 inch (94.8 mm)
Efficiency Beta 1000 8 micron
Media Brand DT High-Performance
Media Type Synthetic
View full details

Specifications

Attributes

  • Outer Diameter: 145.2 mm (5.72 inch)
  • Inner Diameter: 96 mm (3.78 inch)
  • Length: 919 mm (36.18 inch)
  • Gasket ID: 94.8 mm (3.73 inch)
  • Efficiency Beta 1000: 8 micron
  • Bypass Valve: Yes
  • Bypass Valve Setting LR: 3 bar (44 psi)
  • Collapse Burst: 20 bar (290 psi)
  • Media Brand: DT High-Performance
  • Media Type: Synthetic

Packaged Dimensions

  • Packaged Length: 0.175 m (7.00 inch)
  • Packaged Width: 0.175 m (7.00 inch)
  • Packaged Height: 1.010 m (40.40 inch)
  • Packaged Weight: 5.979 kg (13.17 lb)
  • Packaged Volume: 0.032 m3 (1.15 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-06
  • HTS Code: 8421298090
  • UPC Code: 742330190524

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
BOSCH-REXROTH 102600H6SLA000P
DENISON DE2602V8C05
METSO 9651182900
MP FILTRI MP5054
PTI H2600R006EB3V
