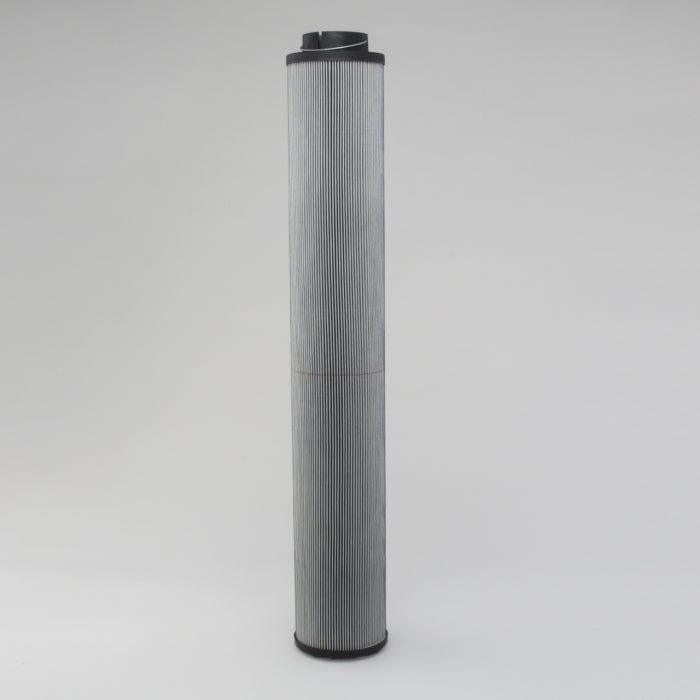

Hydraulic Filter, Cartridge Dt - Donaldson P567001

Attributes

• Outer Diameter: 145.2 mm (5.72 inch)
• Inner Diameter: 96 mm (3.78 inch)
• Length: 919 mm (36.18 inch)
• Gasket ID: 94.8 mm (3.73 inch)
• Efficiency Beta 1000: 5 micron
• Bypass Valve: Yes
• Bypass Valve Setting LR: 3 bar (44 psi)
• Collapse Burst: 20 bar (290 psi)
• Media Brand: DT High-Performance
• Media Type: Synthetic

Packaged Dimensions

• Packaged Length: 0.175 m (7.00 inch)
• Packaged Width: 0.175 m (7.00 inch)
• Packaged Height: 1.013 m (40.50 inch)
• Packaged Weight: 6.029 kg (13.28 lb)
• Packaged Volume: 0.032 m3 (1.15 ft3)

Other Information

• Country of Origin: United States
• NMFC Code: 069100-06
• HTS Code: 8421298090
• UPC Code: 742330190517
