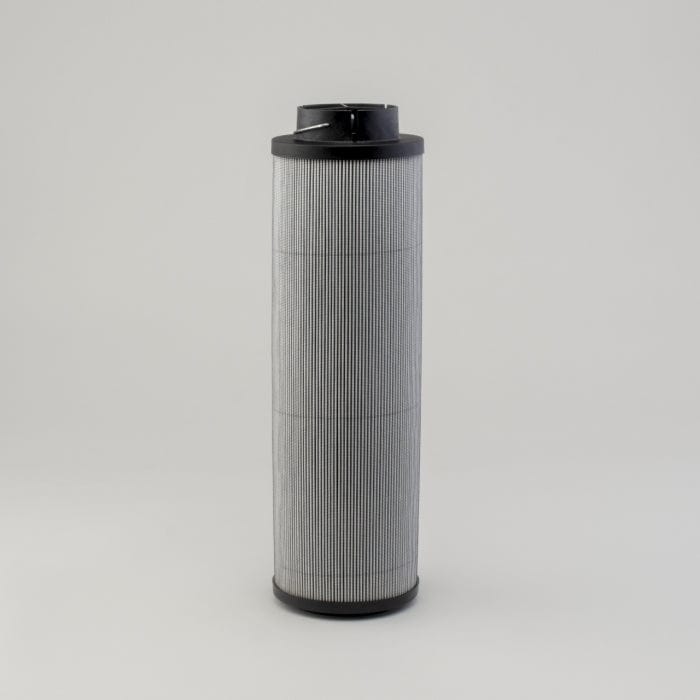

Hydraulic Filter, Cartridge Dt - Donaldson P566998

Hydraulic Filter, Cartridge Dt - Donaldson P566998

£255.52
£255.52
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P566998

Hydraulic Filter, Cartridge Dt
Outer Diameter 5.72 inch (145.22 mm)
Inner Diameter 3.78 inch (96 mm)
Gasket ID 3.73 inch (94.8 mm)
Overall Length 18.96 inch (481.6 mm)
Efficiency Beta 1000 8 micron
Media Brand DT High-Performance
Media Type Synthetic
View full details

Specifications

Attributes

  • Outer Diameter: 145.22 mm (5.72 inch)
  • Inner Diameter: 96 mm (3.78 inch)
  • Gasket ID: 94.8 mm (3.73 inch)
  • Overall Length: 481.6 mm (18.96 inch)
  • Efficiency Beta 1000: 8 micron
  • Bypass Valve: Yes
  • Bypass Valve Setting LR: 3 bar (44 psi)
  • Media Brand: DT High-Performance
  • Media Type: Synthetic

Packaged Dimensions

  • Packaged Length: 0.165 m (6.60 inch)
  • Packaged Width: 0.165 m (6.60 inch)
  • Packaged Height: 0.498 m (19.90 inch)
  • Packaged Weight: 2.220 kg (4.89 lb)
  • Packaged Volume: 0.014 m3 (0.50 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-06
  • HTS Code: 8421298090
  • UPC Code: 742330190487

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
BEHRINGER BE1300R06A43V
DENISON DE1302V6C05
MP FILTRI MP5486
PTI H1300R006EB3V
