• Donaldson Hydraulic Filter, Cartridge Dt - Donaldson P566997
1 1

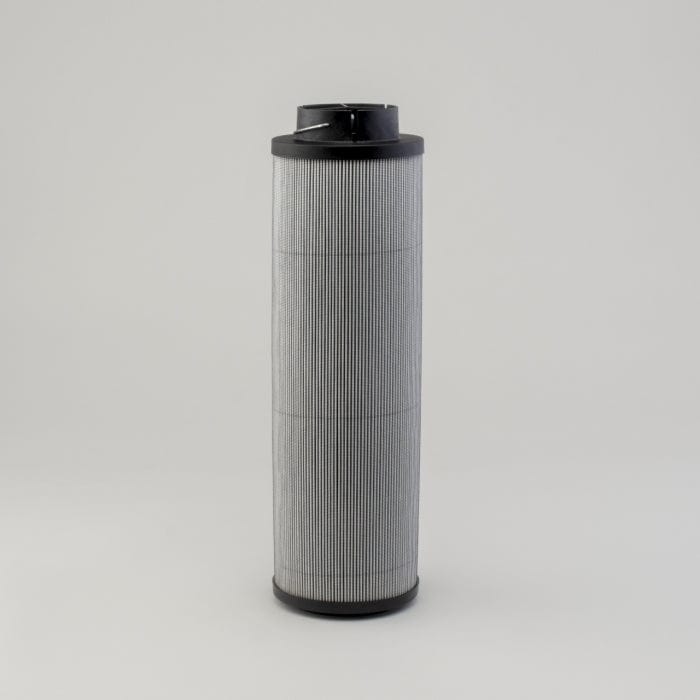

Hydraulic Filter, Cartridge Dt - Donaldson P566997

Hydraulic Filter, Cartridge Dt - Donaldson P566997

£258.15
£258.15
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P566997

Hydraulic Filter, Cartridge Dt
Outer Diameter 5.72 inch (145.22 mm)
Inner Diameter 3.78 inch (96 mm)
Gasket ID 3.73 inch (94.8 mm)
Overall Length 18.96 inch (481.6 mm)
Efficiency Beta 1000 5 micron
Media Brand DT High-Performance
Media Type Synthetic
View full details

Specifications

Attributes

  • Outer Diameter: 145.22 mm (5.72 inch)
  • Inner Diameter: 96 mm (3.78 inch)
  • Gasket ID: 94.8 mm (3.73 inch)
  • Overall Length: 481.6 mm (18.96 inch)
  • Efficiency Beta 1000: 5 micron
  • Bypass Valve: Yes
  • Bypass Valve Setting LR: 3 bar (44 psi)
  • Media Brand: DT High-Performance
  • Media Type: Synthetic

Packaged Dimensions

  • Packaged Length: 0.55 FT
  • Packaged Width: 0.55 FT
  • Packaged Height: 1.64 FT
  • Packaged Weight: 2.388 kg (5.26 lb)
  • Packaged Volume: 0.014 m3 (0.50 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-06
  • HTS Code: 8421298090
  • UPC Code: 742330190470

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
BEHRINGER BE1300R03A43
BEHRINGER BE1300R03A43PTIE
BEHRINGER XH1300R003EB3
BEHRINGER BE1300R03A43V
BOSCH-REXROTH R928017669
DENISON DE1302B6C03
DENISON DE1302V6C03
EPPENSTEINER 30TR1300H3LLLA
EPPENSTEINER 101300LAH3XLA006MSO3000
HUSKY 3677529
MP FILTRI MP5477
MP FILTRI DC130CA03ANPXX
MP FILTRI MP11139
MP FILTRI DK320A003ANCP01
MP FILTRI DK320A003ANCPXX
PTI H1300R003EB3
PTI H1300R003EB3V
