• Donaldson Hydraulic Filter, Cartridge Dt - Donaldson P566992
1 1

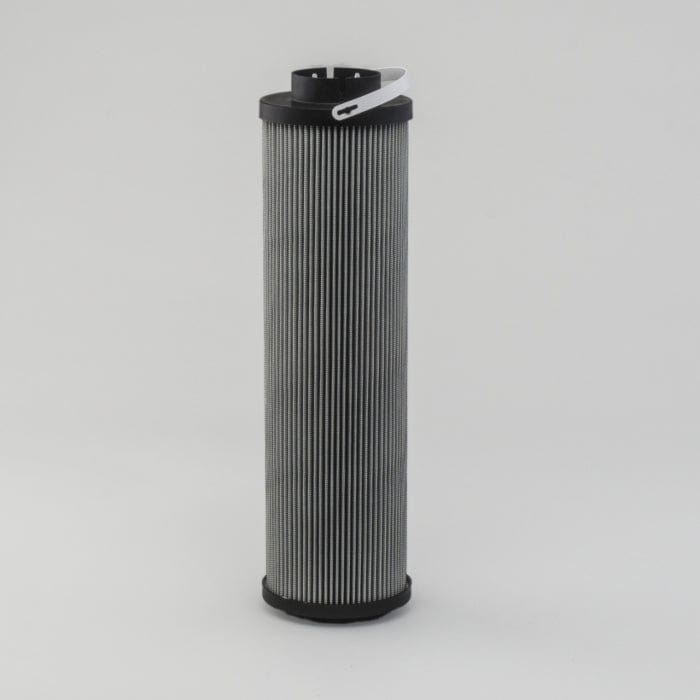

Hydraulic Filter, Cartridge Dt - Donaldson P566992

Hydraulic Filter, Cartridge Dt - Donaldson P566992

£115.55
£115.55
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P566992

Hydraulic Filter, Cartridge Dt
View full details

Specifications

Attributes

  • Outer Diameter: 113.92 mm (4.49 inch)
  • Inner Diameter: 68.6 mm (2.70 inch)
  • Length: 410.7 mm (16.17 inch)
  • Gasket ID: 66 mm (2.60 inch)
  • Efficiency Beta 1000: 23 micron
  • Bypass Valve: Yes
  • Bypass Valve Setting LR: 3.5 bar (51 psi)
  • Collapse Burst: 20 bar (290 psi)
  • Media Brand: DT High-Performance
  • Media Type: Synthetic

Packaged Dimensions

  • Packaged Length: 0.126 m (5.04 inch)
  • Packaged Width: 0.126 m (5.04 inch)
  • Packaged Height: 0.495 m (19.80 inch)
  • Packaged Weight: 1.503 kg (3.31 lb)
  • Packaged Volume: 0.008 m3 (0.29 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-06
  • HTS Code: 8421298090
  • UPC Code: 742330190425

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
DENISON DER852V2C20
MP FILTRI MP4745
PTI H0850R025EB3V
