• Donaldson Hydraulic Filter, Cartridge Dt - Donaldson P566991
1 1

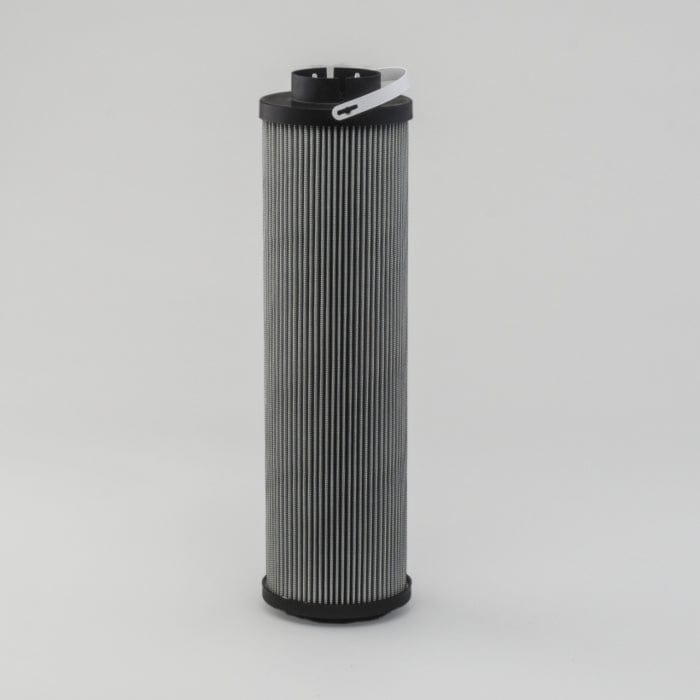

Hydraulic Filter, Cartridge Dt - Donaldson P566991

Hydraulic Filter, Cartridge Dt - Donaldson P566991

£158.63
£158.63
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P566991

Hydraulic Filter, Cartridge Dt
View full details

Specifications

Attributes

  • Outer Diameter: 113.92 mm (4.49 inch)
  • Inner Diameter: 68.6 mm (2.70 inch)
  • Length: 410.7 mm (16.17 inch)
  • Gasket ID: 66 mm (2.60 inch)
  • Efficiency Beta 1000: 12 micron
  • Bypass Valve: Yes
  • Bypass Valve Setting LR: 3.5 bar (51 psi)
  • Collapse Burst: 20 bar (290 psi)
  • Media Brand: DT High-Performance
  • Media Type: Synthetic

Packaged Dimensions

  • Packaged Length: 0.125 m (5.00 inch)
  • Packaged Width: 0.125 m (5.00 inch)
  • Packaged Height: 0.493 m (19.70 inch)
  • Packaged Weight: 1.403 kg (3.09 lb)
  • Packaged Volume: 0.008 m3 (0.29 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-06
  • HTS Code: 8421298090
  • UPC Code: 742330190418

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
BAUER 224429
CINCINNATI 52559351
DENISON DER852V2C10
MP FILTRI MP4737
PTI H0850R012EB3V
TADANO 99707775371
