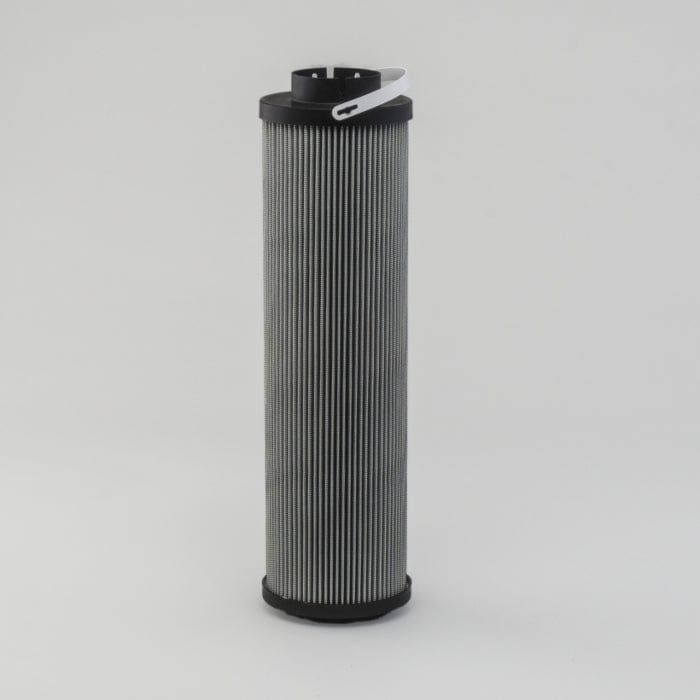

Hydraulic Filter, Cartridge Dt - Donaldson P566990
Hydraulic Filter, Cartridge Dt - Donaldson P566990
Regular price
£113.23
Regular price
Sale price
£113.23
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P566990
Hydraulic Filter, Cartridge DtShare
Collapsible content
Specifications
Attributes
- Outer Diameter: 113.92 mm (4.49 inch)
- Inner Diameter: 68.6 mm (2.70 inch)
- Length: 410.7 mm (16.17 inch)
- Gasket ID: 66 mm (2.60 inch)
- Efficiency Beta 1000: 8 micron
- Bypass Valve: Yes
- Bypass Valve Setting LR: 3.5 bar (51 psi)
- Collapse Burst: 20 bar (290 psi)
- Media Brand: DT High-Performance
- Media Type: Synthetic
Packaged Dimensions
- Packaged Length: 0.123 m (4.90 inch)
- Packaged Width: 0.123 m (4.90 inch)
- Packaged Height: 0.493 m (19.70 inch)
- Packaged Weight: 1.317 kg (2.90 lb)
- Packaged Volume: 0.008 m3 (0.27 ft3)
Other Information
- Country of Origin: United States
- NMFC Code: 069100-06
- HTS Code: 8421298090
- UPC Code: 742330190401
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| ARGO | 7225312 | |
| ARGO | 7225305 | |
| BUCHER | 861015 | |
| DENISON | DER852V2C05 | |
| DENISON | DER852B2C05 | |
| EPPENSTEINER | 30TR850H6LLLA | |
| FILPRO | FP102789 | |
| GRAINGER | 4ZTA9 | |
| JOHN DEERE | F061786 | |
| JOHN DEERE | F061786 | |
| MP FILTRI | MP4727 | |
| MP FILTRI | DK300A005ANCPXX | |
| MP FILTRI | MP66746 | |
| MP FILTRI | DC850CA06ANPXX | |
| PTI | H0850R006EB3V | |
| PTI | H0850R006EB3 | |
| SANDVIK | 55200077 | |
| TEREX | 42212912 | |
| TEREX | 48347912 | |
| TIMBERJACK | F061786 | |
| WISMET | WHE20509 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| JOHN DEERE 1010D | - | FORWARDER | - | JOHN DEERE 4045H | - |
| JOHN DEERE 1010D | - | FORWARDER | - | JOHN DEERE 4045HTJ | - |
| JOHN DEERE 1010D | - | FORWARDER | 1000 SERIES | JOHN DEERE 4045H | - |
| JOHN DEERE 1070D | - | HARVESTER | - | JOHN DEERE 6068H | - |
| JOHN DEERE 1110D | - | FORWARDER | 1000 SERIES | JOHN DEERE 6068H | - |
| JOHN DEERE 1110D | - | FORWARDER | - | JOHN DEERE 6068H | - |
| JOHN DEERE 1110D | - | FORWARDER | - | JOHN DEERE 6068HTJ | - |
| JOHN DEERE 1158 | - | FORWARDER | 1000 SERIES | CUMMINS 6BTA5.9 | - |
| JOHN DEERE 1158 | - | FORWARDER | - | CUMMINS 6BTA5.9 | - |
| JOHN DEERE 1270E | - | FORESTRY EQUIPMENT | - | JOHN DEERE 6090H | - |
| JOHN DEERE 1410D | - | FORWARDER | 1000 SERIES | JOHN DEERE 6068H | - |
| JOHN DEERE 1410D | - | FORWARDER | - | JOHN DEERE 6068HTJ | - |
| JOHN DEERE 1458 | - | FORWARDER | 1000 SERIES | CUMMINS 6BTA5.9 | - |
| JOHN DEERE 1490D | - | HARVESTER | - | JOHN DEERE 6068HTJ | - |
| JOHN DEERE 1710D | - | FORWARDER | - | JOHN DEERE 6081HTJ | - |
| JOHN DEERE 1710D | - | FORWARDER | - | JOHN DEERE 6081H | - |
| JOHN DEERE 1711D | - | FORWARDER | - | JOHN DEERE 6081HTJ-02 | - |
| JOHN DEERE 335C | - | LOADER | - | JOHN DEERE 6068T | - |
| JOHN DEERE 435C | - | LOADER | - | JOHN DEERE 6068T | - |
| JOHN DEERE 435C | - | LOADER | 400 SERIES | JOHN DEERE 6068T | - |
| JOHN DEERE 437C | - | LOADER | - | JOHN DEERE 6068T | - |
| JOHN DEERE 643J | - | FELLER BUNCHER | - | JOHN DEERE 6068H | - |
| JOHN DEERE 753J | - | FELLER BUNCHER | 700 SERIES | JOHN DEERE 6090H | - |
| JOHN DEERE 759J | - | FELLER BUNCHER | - | JOHN DEERE 6081H | - |
| JOHN DEERE 770D | - | HARVESTER | 700 SERIES | - 770D | - |
| JOHN DEERE 810D | - | FORWARDER | - | JOHN DEERE 4045HTJ | - |
| JOHN DEERE 810D | - | FORWARDER | 800 SERIES | JOHN DEERE 4045H | - |
| JOHN DEERE 843J | - | FELLER BUNCHER | 800 SERIES | JOHN DEERE 6068H | - |
| JOHN DEERE 853J | - | FELLER BUNCHER | - | JOHN DEERE 6081H | - |
| JOHN DEERE 903J | - | FELLER BUNCHER | - | JOHN DEERE 6081H | - |
| JOHN DEERE 903J | - | FELLER BUNCHER | - | JOHN DEERE 6081H | - |
| JOHN DEERE 909J | - | FELLER BUNCHER | - | JOHN DEERE 6081H | - |
| JOHN DEERE 909J | - | FELLER BUNCHER | - | JOHN DEERE 6081H | - |
| JOHN DEERE 909J | - | FELLER BUNCHER | - | JOHN DEERE 6081H | - |
| JOHN DEERE 953J | - | FELLER BUNCHER | - | JOHN DEERE 6081H | - |
| JOHN DEERE 953J | - | FELLER BUNCHER | - | JOHN DEERE 6081H | - |
| JOHN DEERE 959J | - | FELLER BUNCHER | - | JOHN DEERE 6081H | - |
| JOHN DEERE 959J | - | FELLER BUNCHER | - | JOHN DEERE 6081H | - |
| JOHN DEERE 959J | - | FELLER BUNCHER | - | JOHN DEERE 6081H | - |
