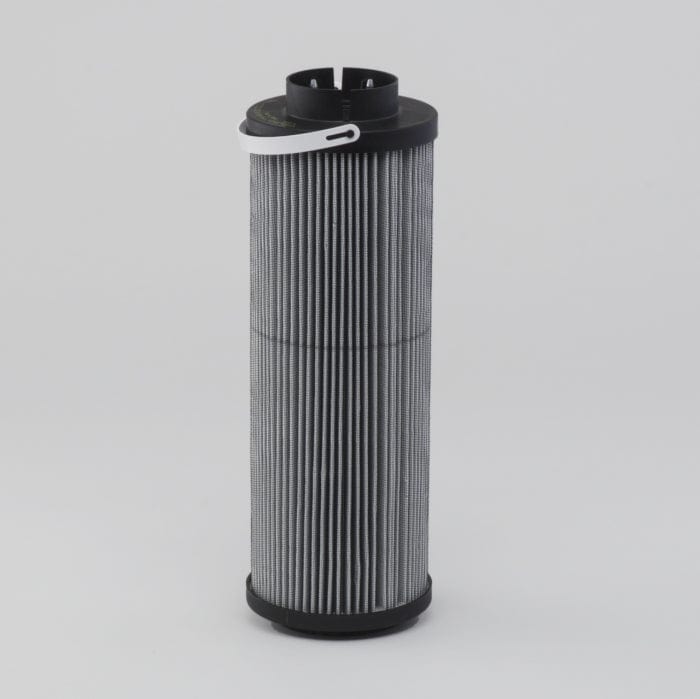

Hydraulic Filter, Cartridge Dt - Donaldson P566988

Attributes

• Outer Diameter: 113.9 mm (4.48 inch)
• Inner Diameter: 68.6 mm (2.70 inch)
• Length: 333 mm (13.11 inch)
• Gasket ID: 66 mm (2.60 inch)
• Efficiency Beta 1000: 23 micron
• Bypass Valve: Yes
• Bypass Valve Setting LR: 3.5 bar (51 psi)
• Collapse Burst: 20 bar (290 psi)
• Media Brand: DT High-Performance
• Media Type: Synthetic

Packaged Dimensions

• Packaged Length: 0.123 m (4.90 inch)
• Packaged Width: 0.123 m (4.90 inch)
• Packaged Height: 0.350 m (14.00 inch)
• Packaged Weight: 1.117 kg (2.46 lb)
• Packaged Volume: 0.005 m3 (0.19 ft3)

Other Information

• Country of Origin: United States
• NMFC Code: 069100-06
• HTS Code: 8421298090
• UPC Code: 742330190388
