• Donaldson Hydraulic Filter, Cartridge Dt - Donaldson P566986
1 1

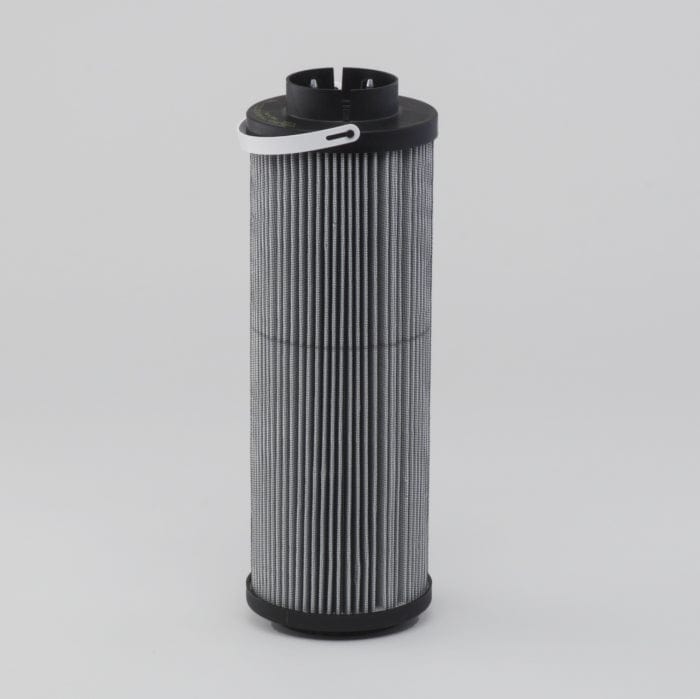

Hydraulic Filter, Cartridge Dt - Donaldson P566986

Hydraulic Filter, Cartridge Dt - Donaldson P566986

£120.75
£120.75
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P566986

Hydraulic Filter, Cartridge Dt
Outer Diameter 4.48 inch (113.9 mm)
Inner Diameter 2.70 inch (68.6 mm)
Length 13.11 inch (333 mm)
Gasket ID 2.60 inch (66 mm)
Efficiency Beta 1000 8 micron
Bypass Valve Yes
Bypass Valve Setting LR 51 psi (3.5 bar)
Collapse Burst 290 psi (20 bar)
Media Brand DT High-Performance
Media Type Synthetic
View full details

Specifications

Attributes

  • Outer Diameter: 113.9 mm (4.48 inch)
  • Inner Diameter: 68.6 mm (2.70 inch)
  • Length: 333 mm (13.11 inch)
  • Gasket ID: 66 mm (2.60 inch)
  • Efficiency Beta 1000: 8 micron
  • Bypass Valve: Yes
  • Bypass Valve Setting LR: 3.5 bar (51 psi)
  • Collapse Burst: 20 bar (290 psi)
  • Media Brand: DT High-Performance
  • Media Type: Synthetic

Packaged Dimensions

  • Packaged Length: 0.128 m (5.10 inch)
  • Packaged Width: 0.128 m (5.10 inch)
  • Packaged Height: 0.348 m (13.90 inch)
  • Packaged Weight: 1.099 kg (2.42 lb)
  • Packaged Volume: 0.006 m3 (0.21 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-06
  • HTS Code: 8421298090
  • UPC Code: 742330190364

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
DENISON DER662V2C05
MP FILTRI MP4677
PTI H0660R006EB3V
