• Donaldson Hydraulic Filter, Cartridge Dt - Donaldson P566984
1 1

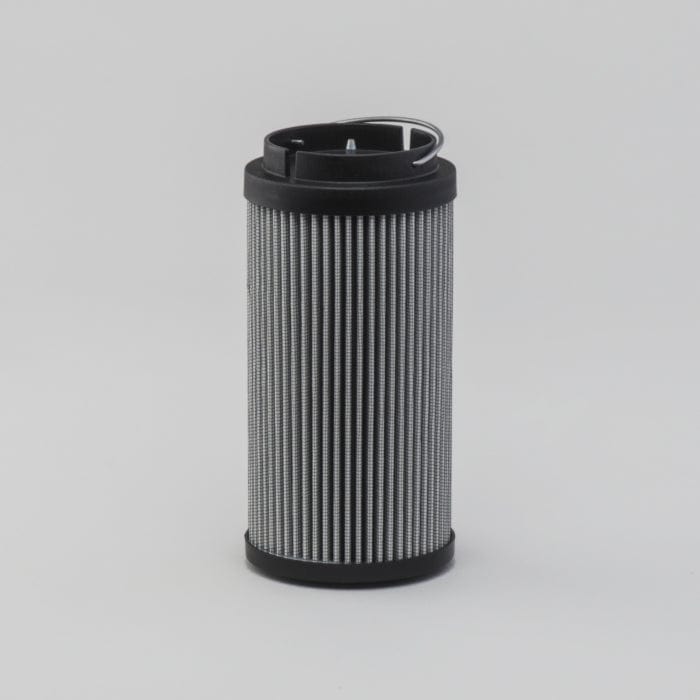

Hydraulic Filter, Cartridge Dt - Donaldson P566984

Hydraulic Filter, Cartridge Dt - Donaldson P566984

£127.12
£127.12
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P566984

Hydraulic Filter, Cartridge Dt
Outer Diameter 3.72 inch (94.5 mm)
Inner Diameter 1.9 inch (48.3 mm)
Length 7.67 inch (194.7 mm)
Gasket ID 1.86 inch (47.22 mm)
Efficiency Beta 1000 25 micron
Bypass Valve Yes
Bypass Valve Setting LR 50 psi (3.45 bar)
Media Brand DT High-Performance
Media Type Synthetic
View full details

Specifications

Attributes

  • Outer Diameter: 94.5 mm (3.72 inch)
  • Inner Diameter: 48.3 mm (1.9 inch)
  • Length: 194.7 mm (7.67 inch)
  • Gasket ID: 47.22 mm (1.86 inch)
  • Efficiency Beta 1000: 25 micron
  • Bypass Valve: Yes
  • Bypass Valve Setting LR: 3.45 bar (50 psi)
  • Media Brand: DT High-Performance
  • Media Type: Synthetic

Packaged Dimensions

  • Packaged Length: 0.105 m (4.20 inch)
  • Packaged Width: 0.105 m (4.20 inch)
  • Packaged Height: 0.253 m (10.10 inch)
  • Packaged Weight: 0.586 kg (1.29 lb)
  • Packaged Volume: 0.003 m3 (0.10 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-06
  • HTS Code: 8421298090
  • UPC Code: 742330190340

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
BEHRINGER BE330R25A43
BEHRINGER BE330R25A43PT1
BEHRINGER BE330R25A43V
BOSCH-REXROTH R928017551
DENISON DER332V2C20
DENISON DER332B2C20
EPPENSTEINER 10330LAH20XL0006MSO3000
EPPENSTEINER 30TR330H20LLLA
FAUN 99707308806
MP FILTRI DK270A020ANCPXX
MP FILTRI DC330CA25ANPXX
MP FILTRI MP4232
NEW HOLLAND 920016584
PTI H0330R025EB3
PTI H0330R025EB3V
TADANO 99707308806
