• Donaldson Hydraulic Filter, Cartridge Dt - Donaldson P566981
1 1

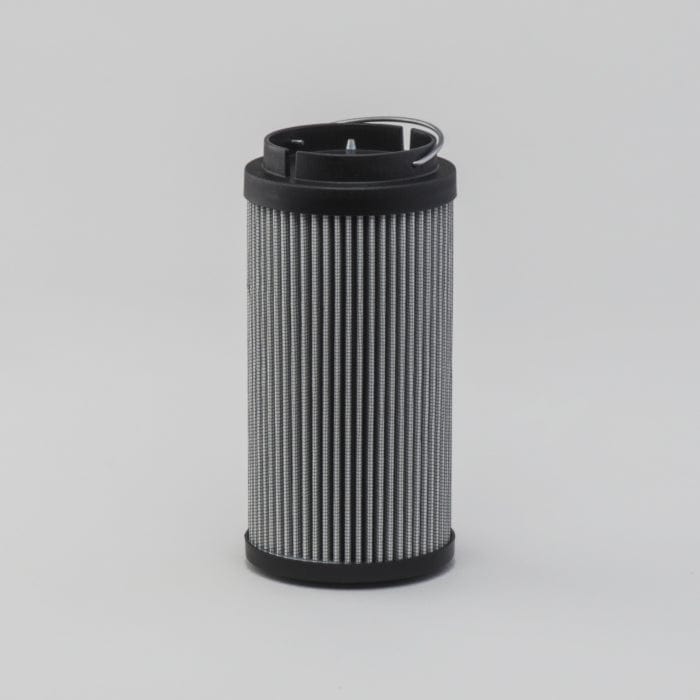

Hydraulic Filter, Cartridge Dt - Donaldson P566981

Hydraulic Filter, Cartridge Dt - Donaldson P566981

£132.19
£132.19
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P566981

Hydraulic Filter, Cartridge Dt
Outer Diameter 3.72 inch (94.5 mm)
Inner Diameter 1.9 inch (48.3 mm)
Length 7.67 inch (194.7 mm)
Gasket ID 1.86 inch (47.22 mm)
Efficiency Beta 1000 5 micron
Bypass Valve Yes
Bypass Valve Setting LR 50 psi (3.45 bar)
Media Brand DT High-Performance
Media Type Synthetic
View full details

Specifications

Attributes

  • Outer Diameter: 94.5 mm (3.72 inch)
  • Inner Diameter: 48.3 mm (1.9 inch)
  • Length: 194.7 mm (7.67 inch)
  • Gasket ID: 47.22 mm (1.86 inch)
  • Efficiency Beta 1000: 5 micron
  • Bypass Valve: Yes
  • Bypass Valve Setting LR: 3.45 bar (50 psi)
  • Media Brand: DT High-Performance
  • Media Type: Synthetic

Packaged Dimensions

  • Packaged Length: 0.105 m (4.20 inch)
  • Packaged Width: 0.105 m (4.20 inch)
  • Packaged Height: 0.250 m (10.00 inch)
  • Packaged Weight: 0.586 kg (1.29 lb)
  • Packaged Volume: 0.003 m3 (0.10 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-06
  • HTS Code: 8421298090
  • UPC Code: 742330190319

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
BEHRINGER BE330R03A43V
DENISON DER332V2C03
MP FILTRI MP4205
PTI H0330R003EB3V
