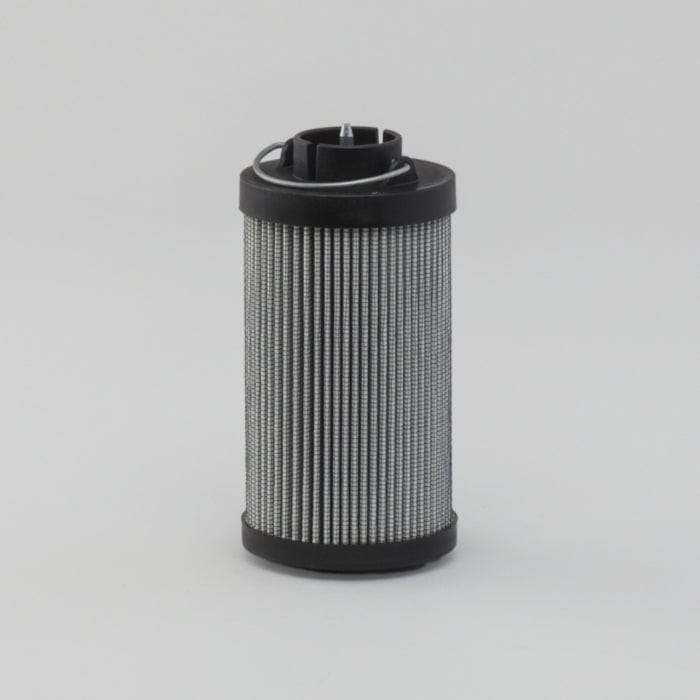

Hydraulic Filter, Cartridge Dt - Donaldson P566980

Hydraulic Filter, Cartridge Dt - Donaldson P566980

Regular price £79.40
Regular price Sale price £79.40
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P566980

Hydraulic Filter, Cartridge Dt
Outer Diameter 2.85 inch (72.4 mm)
Inner Diameter 1.34 inch (34.1 mm)
Length 7.99 inch (203 mm)
Gasket ID 1.30 inch (32.9 mm)
Efficiency Beta 1000 25 micron
Bypass Valve Yes
Bypass Valve Setting LR 50 psi (3.45 bar)
Media Brand DT High-Performance
Media Type Synthetic
View full details

Collapsible content

Specifications

Attributes

  • Outer Diameter: 72.4 mm (2.85 inch)
  • Inner Diameter: 34.1 mm (1.34 inch)
  • Length: 203 mm (7.99 inch)
  • Gasket ID: 32.9 mm (1.30 inch)
  • Efficiency Beta 1000: 25 micron
  • Bypass Valve: Yes
  • Bypass Valve Setting LR: 3.45 bar (50 psi)
  • Media Brand: DT High-Performance
  • Media Type: Synthetic

Packaged Dimensions

  • Packaged Length: 0.090 m (3.60 inch)
  • Packaged Width: 0.090 m (3.60 inch)
  • Packaged Height: 0.253 m (10.10 inch)
  • Packaged Weight: 0.415 kg (0.92 lb)
  • Packaged Volume: 0.002 m3 (0.08 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-06
  • HTS Code: 8421298090
  • UPC Code: 742330190302

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
BOSCH-REXROTH R928022716
DENISON DER242V2C20
DENISON DER242B2C20
EPPENSTEINER 10240LAH20XLA006VSO3000
EPPENSTEINER 30TR240H20LLLA
MERLO 62625
MP FILTRI MP3633
MP FILTRI DK260A020VNCP01
MP FILTRI DK260A020ANCPXX
MP FILTRI DC240CA25ANPXX
MP FILTRI MP9554
PTI H0240R025EB3
PTI H0240R025EB3V
SUPERIOR INDUSTRIES COS11404
