• Donaldson Hydraulic Filter, Cartridge Dt - Donaldson P566977
1 1

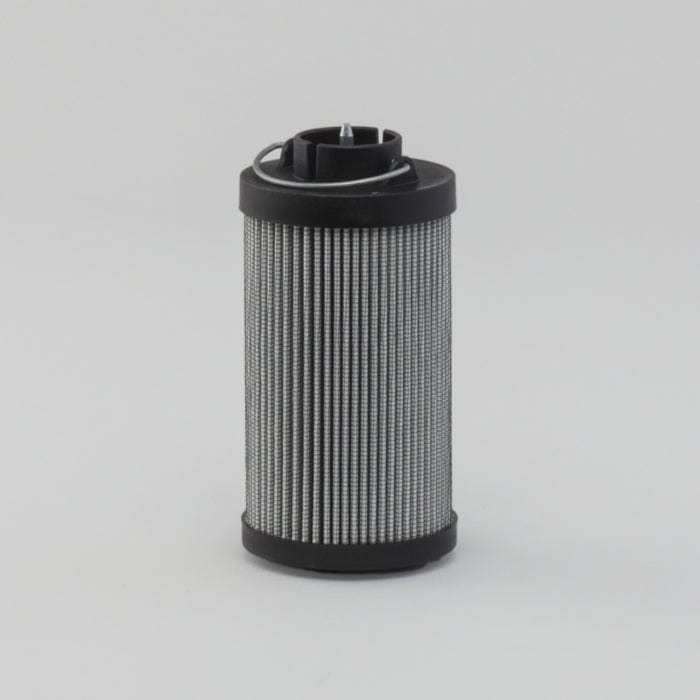

Hydraulic Filter, Cartridge Dt - Donaldson P566977

Hydraulic Filter, Cartridge Dt - Donaldson P566977

£110.43
£110.43
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P566977

Hydraulic Filter, Cartridge Dt
Outer Diameter 2.85 inch (72.4 mm)
Inner Diameter 1.34 inch (34.1 mm)
Length 7.99 inch (203 mm)
Gasket ID 1.30 inch (32.9 mm)
Efficiency Beta 1000 5 micron
Bypass Valve Yes
Bypass Valve Setting LR 50 psi (3.45 bar)
Media Brand DT High-Performance
Media Type Synthetic
View full details

Specifications

Attributes

  • Outer Diameter: 72.4 mm (2.85 inch)
  • Inner Diameter: 34.1 mm (1.34 inch)
  • Length: 203 mm (7.99 inch)
  • Gasket ID: 32.9 mm (1.30 inch)
  • Efficiency Beta 1000: 5 micron
  • Bypass Valve: Yes
  • Bypass Valve Setting LR: 3.45 bar (50 psi)
  • Media Brand: DT High-Performance
  • Media Type: Synthetic

Packaged Dimensions

  • Packaged Length: 0.099 m (3.94 inch)
  • Packaged Width: 0.099 m (3.94 inch)
  • Packaged Height: 0.236 m (9.45 inch)
  • Packaged Weight: 0.427 kg (0.94 lb)
  • Packaged Volume: 0.002 m3 (0.08 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-06
  • HTS Code: 8421298090
  • UPC Code: 742330190272

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
BOSCH-REXROTH ABZFER0140031XMA
BOSCH-REXROTH ABZFER0140031XVA
BOSCH-REXROTH ABZFRS0140031XMA
BOSCH-REXROTH ABZFRS0140031XVA
DENISON DER242B2C03
DENISON DER242V2C03
EPPENSTEINER 30TR240H3LLLA
MP FILTRI MP3485
MP FILTRI DK260A003ANCPXX
MP FILTRI DC240CA03ANPXX
PTI H0240R003EB3
PTI H0240R003EB3V
