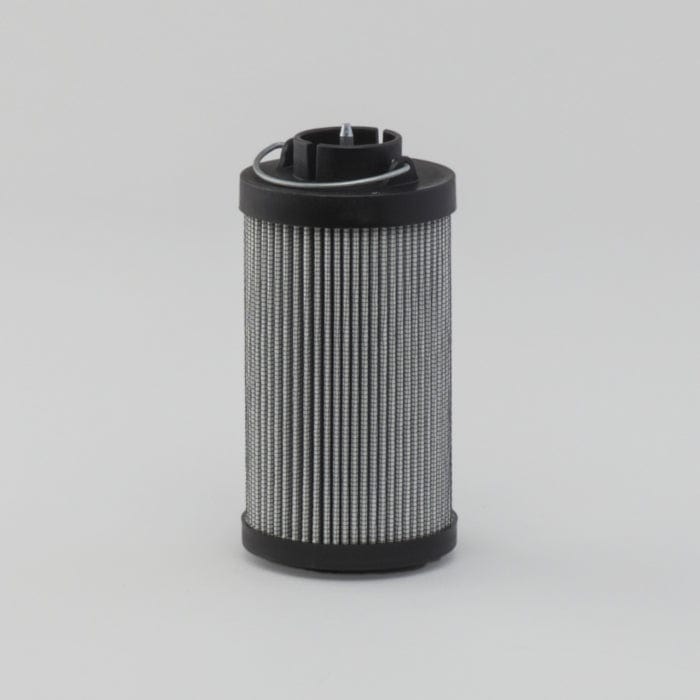

• Donaldson Hydraulic Filter, Cartridge Dt - Donaldson P566970
1 1

Hydraulic Filter, Cartridge Dt - Donaldson P566970

Hydraulic Filter, Cartridge Dt - Donaldson P566970

£87.55
£87.55
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P566970

Hydraulic Filter, Cartridge Dt
Outer Diameter 2.86 inch (72.6 mm)
Inner Diameter 1.34 inch (34.1 mm)
Length 5.67 inch (144 mm)
Gasket ID 1.30 inch (32.9 mm)
Efficiency Beta 1000 8 micron
Bypass Valve Yes
Bypass Valve Setting LR 44 psi (3 bar)
Media Brand DT High-Performance
Media Type Synthetic
View full details

Specifications

Attributes

  • Outer Diameter: 72.6 mm (2.86 inch)
  • Inner Diameter: 34.1 mm (1.34 inch)
  • Length: 144 mm (5.67 inch)
  • Gasket ID: 32.9 mm (1.30 inch)
  • Efficiency Beta 1000: 8 micron
  • Bypass Valve: Yes
  • Bypass Valve Setting LR: 3 bar (44 psi)
  • Media Brand: DT High-Performance
  • Media Type: Synthetic

Packaged Dimensions

  • Packaged Length: 0.088 m (3.50 inch)
  • Packaged Width: 0.088 m (3.50 inch)
  • Packaged Height: 0.255 m (10.20 inch)
  • Packaged Weight: 0.331 kg (0.73 lb)
  • Packaged Volume: 0.002 m3 (0.07 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-06
  • HTS Code: 8421298090
  • UPC Code: 742330190241

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
BEHRINGER BE160R06A43
BEHRINGER BE160R06A43V
BOSCH-REXROTH R928017507
DENISON DER162B1C05
DENISON DER162V1C05
EPPENSTEINER 10160LAH6XLA006MSO3000
EPPENSTEINER 30TR160H6LLLA
EPPENSTEINER 10160LAH6XL0006MSO3000
MP FILTRI DK238A005ANCPXX
MP FILTRI MP3455
MP FILTRI MP9452
MP FILTRI DC160CA06ANPXX
PTI H0160R006EB3
PTI H0160R006EB3V
