• Donaldson Hydraulic Filter, Cartridge Dt - Donaldson P566966
1 1

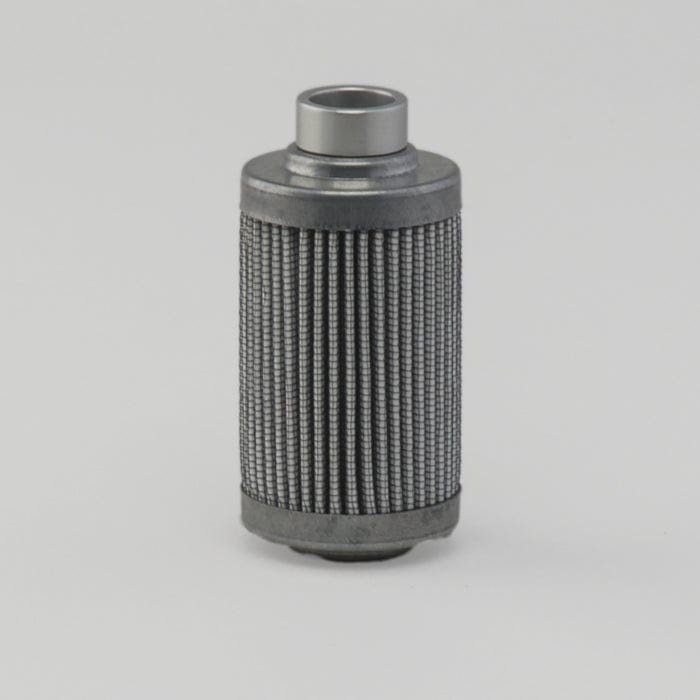

Hydraulic Filter, Cartridge Dt - Donaldson P566966

Hydraulic Filter, Cartridge Dt - Donaldson P566966

£64.28
£64.28
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P566966

Hydraulic Filter, Cartridge Dt
View full details

Specifications

Attributes

  • Outer Diameter: 47.8 mm (1.88 inch)
  • Inner Diameter: 22.22 mm (0.87 inch)
  • Gasket ID: 21 mm (0.83 inch)
  • Overall Length: 169.8 mm (6.69 inch)
  • Efficiency Beta 1000: 8 micron
  • Bypass Valve: Yes
  • Bypass Valve Setting LR: 3 bar (44 psi)
  • Media Brand: DT High-Performance
  • Media Type: Synthetic

Packaged Dimensions

  • Packaged Length: 0.18 FT
  • Packaged Width: 0.18 FT
  • Packaged Height: 0.86 FT
  • Packaged Weight: 0.245 kg (0.54 lb)
  • Packaged Volume: 0.001 m3 (0.03 ft3)

Other Information

  • Country of Origin: Canada
  • NMFC Code: 069100-06
  • HTS Code: 8421298090
  • UPC Code: 742330190203

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
DENISON DER112V2C05
DENISON DER112B2C05
MP FILTRI DK230A005ANCPXX
MP FILTRI DC1101C06ANPXX
