• Donaldson Hydraulic Filter, Cartridge Dt - Donaldson P566706
1 1

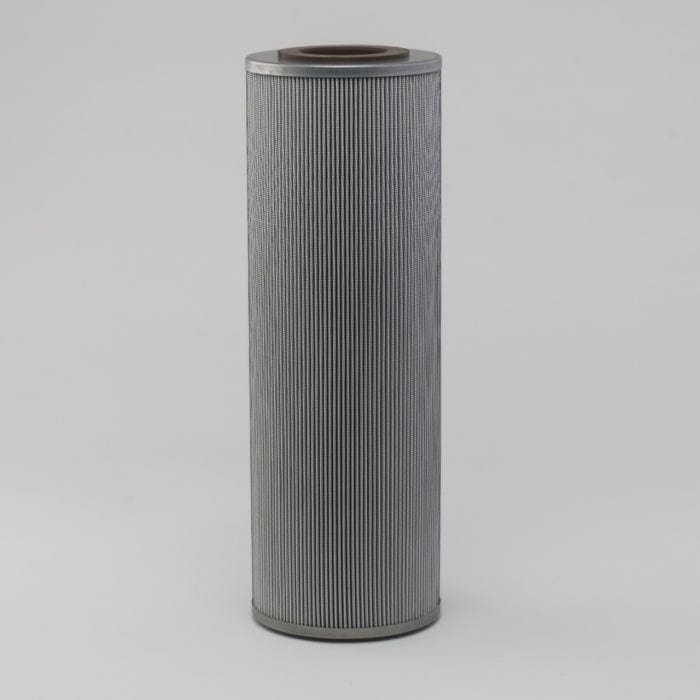

Hydraulic Filter, Cartridge Dt - Donaldson P566706

Hydraulic Filter, Cartridge Dt - Donaldson P566706

£232.72
£232.72
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P566706

Hydraulic Filter, Cartridge Dt
Seal Material Viton
Outer Diameter 6.02 inch (152.8 mm)
Inner Diameter 2.87 inch (72.9 mm)
Overall Length 17.99 inch (457 mm)
Efficiency Beta 1000 8 micron
Collapse Burst 125 psi (8.6 bar)
Style Cartridge
Brand DT High-Performance
Media Type Synthetic
View full details

Specifications

Attributes

  • Seal Material: Viton
  • Outer Diameter: 152.8 mm (6.02 inch)
  • Inner Diameter: 72.9 mm (2.87 inch)
  • Overall Length: 457 mm (17.99 inch)
  • Efficiency Beta 1000: 8 micron
  • Collapse Burst: 8.6 bar (125 psi)
  • Style: Cartridge
  • Brand: DT High-Performance
  • Media Type: Synthetic

Packaged Dimensions

  • Packaged Length: 0.165 m (6.60 inch)
  • Packaged Width: 0.165 m (6.60 inch)
  • Packaged Height: 0.498 m (19.90 inch)
  • Packaged Weight: 2.878 kg (6.34 lb)
  • Packaged Volume: 0.014 m3 (0.50 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-06
  • HTS Code: 8421298090
  • UPC Code: 742330179680

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
DENISON DE0101V5C05
HILCO PH71803C
PTI H83150HDV
SWIFT SF0101186UMV
VICKERS V0101V5C05
