• Donaldson Hydraulic Filter, Cartridge Dt - Donaldson P566701
1 1

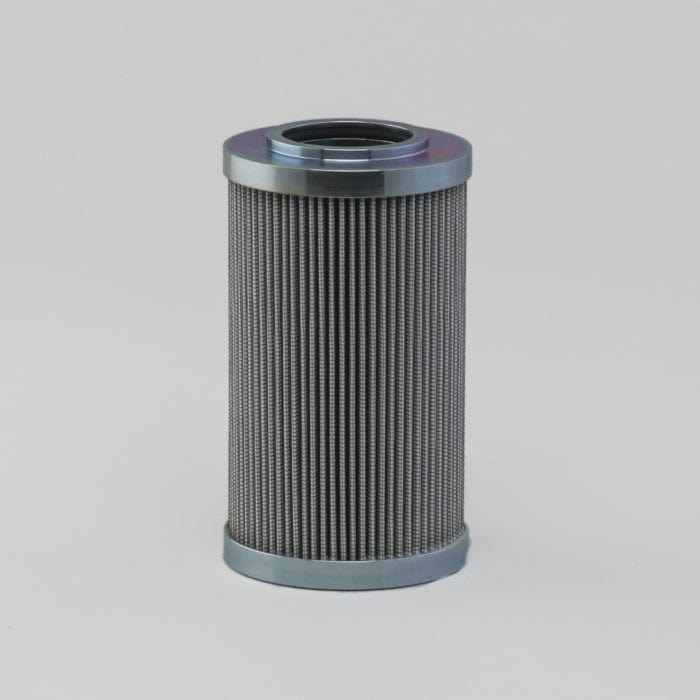

Hydraulic Filter, Cartridge Dt - Donaldson P566701

Hydraulic Filter, Cartridge Dt - Donaldson P566701

£164.65
£164.65
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P566701

Hydraulic Filter, Cartridge Dt
Seal Material Viton
Outer Diameter 3.6 inch (91.5 mm)
Inner Diameter 1.9 inch (48.2 mm)
Overall Length 6.37 inch (161.8 mm)
Efficiency Beta 1000 12 micron
Collapse Burst 3002 psi (207 bar)
Style Cartridge
Brand DT High-Performance
Media Type Synthetic
View full details

Specifications

Attributes

  • Seal Material: Viton
  • Outer Diameter: 91.5 mm (3.6 inch)
  • Inner Diameter: 48.2 mm (1.9 inch)
  • Overall Length: 161.8 mm (6.37 inch)
  • Efficiency Beta 1000: 12 micron
  • Collapse Burst: 207 bar (3002 psi)
  • Style: Cartridge
  • Brand: DT High-Performance
  • Media Type: Synthetic

Packaged Dimensions

  • Packaged Length: 0.246 m (9.84 inch)
  • Packaged Width: 0.108 m (4.33 inch)
  • Packaged Height: 0.108 m (4.33 inch)
  • Packaged Weight: 1.385 kg (3.05 lb)
  • Packaged Volume: 0.003 m3 (0.11 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-10
  • HTS Code: 8421298090
  • UPC Code: 742330179635

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
DENISON DE0334V2H10
MP FILTRI MP4092
PTI H0330D012UV
VICKERS V0334V2H10
