• Donaldson Hydraulic Filter, Cartridge Dt - Donaldson P566700
1 1

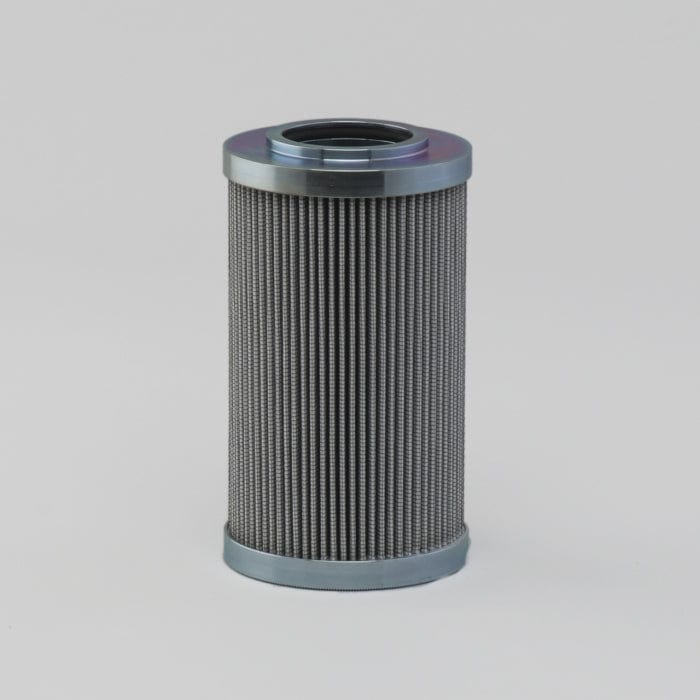

Hydraulic Filter, Cartridge Dt - Donaldson P566700

Hydraulic Filter, Cartridge Dt - Donaldson P566700

£167.97
£167.97
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P566700

Hydraulic Filter, Cartridge Dt
View full details

Specifications

Attributes

  • Seal Material: Viton
  • Outer Diameter: 91.5 mm (3.6 inch)
  • Inner Diameter: 48.26 mm (1.9 inch)
  • Overall Length: 161 mm (6.34 inch)
  • Efficiency Beta 1000: 5 micron
  • Collapse Burst: 207 bar (3002 psi)
  • Style: Cartridge
  • Brand: DT High-Performance
  • Media Type: Synthetic

Packaged Dimensions

  • Packaged Length: 0.246 m (9.84 inch)
  • Packaged Width: 0.108 m (4.33 inch)
  • Packaged Height: 0.108 m (4.33 inch)
  • Packaged Weight: 1.394 kg (3.07 lb)
  • Packaged Volume: 0.003 m3 (0.11 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-09
  • HTS Code: 8421298090
  • UPC Code: 742330179628

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
DENISON DE0334V2H03
MP FILTRI MP4083
PTI H0330D003UV
VICKERS V0334V2H03
