• Donaldson Hydraulic Filter, Cartridge Dt - Donaldson P566683
1 1

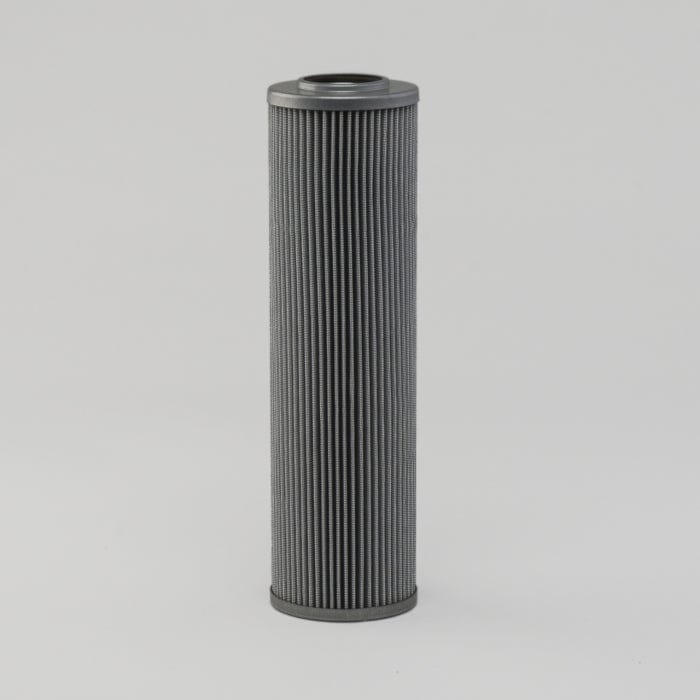

Hydraulic Filter, Cartridge Dt - Donaldson P566683

Hydraulic Filter, Cartridge Dt - Donaldson P566683

£89.99
£89.99
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P566683

Hydraulic Filter, Cartridge Dt
Seal Material Viton
Outer Diameter 3.56 inch (90.4 mm)
Inner Diameter 1.90 inch (48.2 mm)
Overall Length 12.97 inch (329.5 mm)
Efficiency Beta 1000 8 micron
Bypass Valve No
Collapse Burst 450 psi (31 bar)
Style Cartridge
Brand DT High-Performance
Media Type Synthetic
View full details

Specifications

Attributes

  • Seal Material: Viton
  • Outer Diameter: 90.4 mm (3.56 inch)
  • Inner Diameter: 48.2 mm (1.90 inch)
  • Overall Length: 329.5 mm (12.97 inch)
  • Efficiency Beta 1000: 8 micron
  • Bypass Valve: No
  • Collapse Burst: 31 bar (450 psi)
  • Style: Cartridge
  • Brand: DT High-Performance
  • Media Type: Synthetic

Packaged Dimensions

  • Packaged Length: 0.345 m (13.78 inch)
  • Packaged Width: 0.108 m (4.33 inch)
  • Packaged Height: 0.108 m (4.33 inch)
  • Packaged Weight: 0.844 kg (1.86 lb)
  • Packaged Volume: 0.004 m3 (0.15 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-06
  • HTS Code: 8421298090
  • UPC Code: 742330179451

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
BILLION WN200134
CATERPILLAR 3I1944
COMEX H0660DN6
DENISON DE0662B2C05
EPPENSTEINER 400HL660H6LLLA
MP FILTRI DP138A005ANPXX
MP FILTRI MP9705
MP FILTRI MP9705
MP FILTRI DC6601A06ANPXX
PTI H0660D006EB
VICKERS V0662B2C05
VICKERS V0662B2V05
