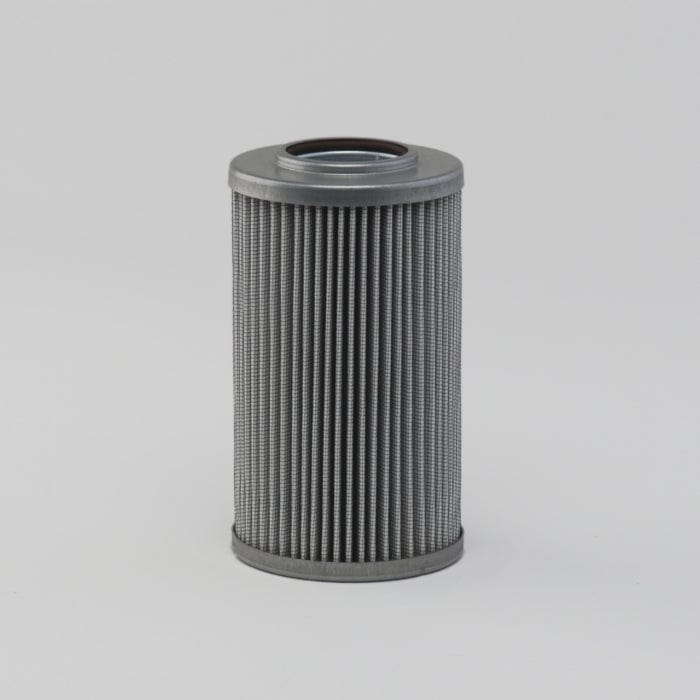

Hydraulic Filter, Cartridge Dt - Donaldson P566680

Hydraulic Filter, Cartridge Dt - Donaldson P566680

£94.31
£94.31
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P566680

Hydraulic Filter, Cartridge Dt
View full details

Specifications

Attributes

  • Seal Material: Viton
  • Outer Diameter: 92.1 mm (3.63 inch)
  • Inner Diameter: 48.1 mm (1.89 inch)
  • Overall Length: 163.7 mm (6.44 inch)
  • Efficiency Beta 1000: 12 micron
  • Collapse Burst: 10.3 bar (149 psi)
  • Style: Cartridge
  • Brand: DT High-Performance
  • Media Type: Synthetic

Packaged Dimensions

  • Packaged Length: 0.105 m (4.20 inch)
  • Packaged Width: 0.105 m (4.20 inch)
  • Packaged Height: 0.180 m (7.20 inch)
  • Packaged Weight: 0.508 kg (1.12 lb)
  • Packaged Volume: 0.002 m3 (0.07 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-08
  • HTS Code: 8421298090
  • UPC Code: 742330179420

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
BEHRINGER BE330P12AV
BEHRINGER BE330P12A
BOSCH-REXROTH R928022476
BOSCH-REXROTH 9330PWR10A000M
BOSCH-REXROTH 9330LAPWR10A000MSO3000
BOSCH-REXROTH R928017293
BOSCH-REXROTH R928017305
BOSCH-REXROTH DFV330G10
DENISON DE0332V2C10
EPPENSTEINER 9330LAH10XLA000VSO3000
EPPENSTEINER E400HL330H10LLLA
EPPENSTEINER 9330LAH10SLA000MSO3000
EPPENSTEINER 9330LAH10SLA000P
FILPRO FP101390
GRAINGER 1XPW6
GRAINGER 52YT59
IKRON HHC30095
JCB 5106585
KOMATSU 69440300
LIEBHERR 10037623
MP FILTRI DP120A010VNP01
MP FILTRI MP4150
NORMAN ULTRAPOROUS HYU650
PTI H0330D012EV
SANY 60283940
SANY B222100000116
VICKERS V0332V2C10
