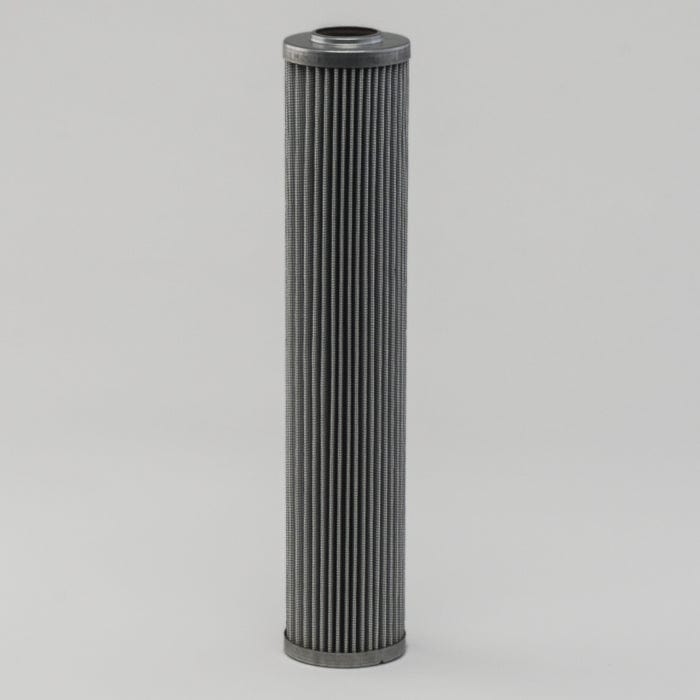

Donaldson P566677

Hydraulic Filter, Cartridge Dt
Seal Material Viton
Outer Diameter 2.70 inch (68.5 mm)
Inner Diameter 1.36 inch (34.5 mm)
Overall Length 13.96 inch (354.7 mm)
Efficiency Beta 1000 23 micron
Collapse Burst 149 psi (10.3 bar)
Style Cartridge
Brand DT High-Performance
Media Type Synthetic
Primary Application HYDAC/HYCON 0280D020BN3HC
View full details

Specifications

Attributes

  • Seal Material: Viton
  • Outer Diameter: 68.5 mm (2.70 inch)
  • Inner Diameter: 34.5 mm (1.36 inch)
  • Overall Length: 354.7 mm (13.96 inch)
  • Efficiency Beta 1000: 23 micron
  • Collapse Burst: 10.3 bar (149 psi)
  • Style: Cartridge
  • Brand: DT High-Performance
  • Media Type: Synthetic
  • Primary Application: HYDAC/HYCON 0280D020BN3HC

Packaged Dimensions

  • Packaged Length: 0.095 m (3.80 inch)
  • Packaged Width: 0.090 m (3.60 inch)
  • Packaged Height: 0.435 m (17.40 inch)
  • Packaged Weight: 0.695 kg (1.53 lb)
  • Packaged Volume: 0.004 m3 (0.14 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-07
  • HTS Code: 8421298090
  • UPC Code: 742330179390

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
BEHRINGER BE280P25A
BEHRINGER BE280P25AV
BOSCH-REXROTH R928017275
FILPRO FP101858
LETOURNEAU 4244991
MP FILTRI DC2801A25ANPXX
MP FILTRI DP108A020ANPXX
MP FILTRI MP3444
MP FILTRI MP3441
PTI H0280D025EB
PTI H0280D025EV
VICKERS V3RB4C20
VICKERS V3RV4C20
