• Donaldson Hydraulic Filter, Cartridge Dt - Donaldson P566655
1 1

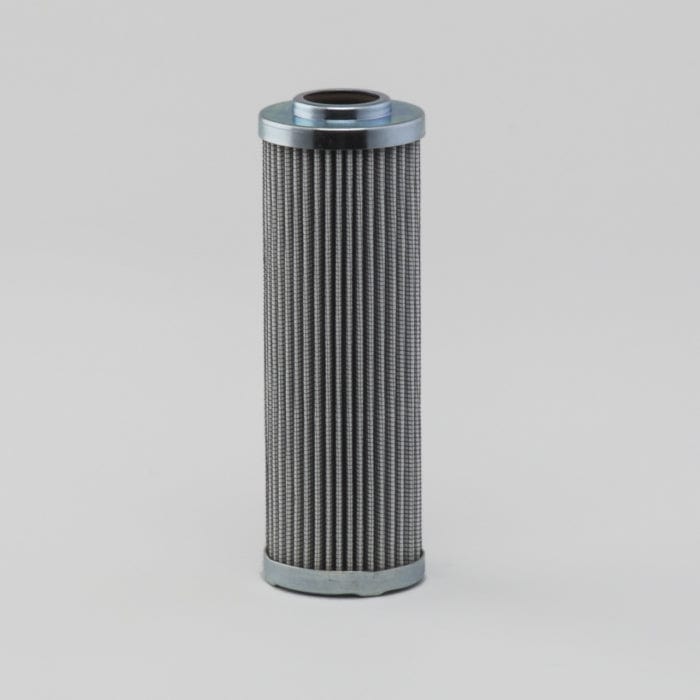

Hydraulic Filter, Cartridge Dt - Donaldson P566655

Hydraulic Filter, Cartridge Dt - Donaldson P566655

£92.33
£92.33
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P566655

Hydraulic Filter, Cartridge Dt
View full details

Specifications

Attributes

  • Seal Material: Viton
  • Outer Diameter: 56 mm (2.20 inch)
  • Inner Diameter: 25.5 mm (1.00 inch)
  • Overall Length: 169.9 mm (6.69 inch)
  • Efficiency Beta 1000: 8 micron
  • Collapse Burst: 31 bar (450 psi)
  • Style: Cartridge
  • Brand: DT High-Performance
  • Media Type: Synthetic

Packaged Dimensions

  • Packaged Length: 0.227 m (9.06 inch)
  • Packaged Width: 0.099 m (3.94 inch)
  • Packaged Height: 0.099 m (3.94 inch)
  • Packaged Weight: 0.304 kg (0.67 lb)
  • Packaged Volume: 0.002 m3 (0.08 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-06
  • HTS Code: 8421298090
  • UPC Code: 742330179178

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
CASE/CASE IH 47825344
GENIE 60857GT Filter element only.
VICKERS V0512V7C05
