• Donaldson Hydraulic Filter, Cartridge Dt - Donaldson P566536
1 1

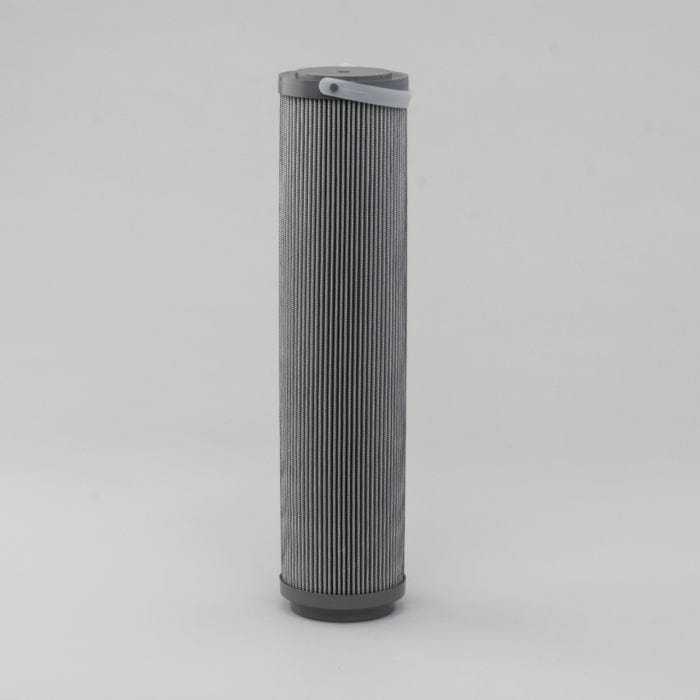

Hydraulic Filter, Cartridge Dt - Donaldson P566536

Hydraulic Filter, Cartridge Dt - Donaldson P566536

£138.96
£138.96
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P566536

Hydraulic Filter, Cartridge Dt
View full details

Specifications

Attributes

  • Seal Material: Viton
  • Outer Diameter: 101.2 mm (3.98 inch)
  • Inner Diameter: 64 mm (2.52 inch)
  • Length: 407.2 mm (16.03 inch)
  • Efficiency Beta 1000: 12 micron
  • Collapse Burst: 10.3 bar (149 psi)
  • Style: Cartridge
  • Brand: DT High-Performance
  • Media Type: Synthetic

Packaged Dimensions

  • Packaged Length: 0.110 m (4.40 inch)
  • Packaged Width: 0.110 m (4.40 inch)
  • Packaged Height: 0.490 m (19.60 inch)
  • Packaged Weight: 0.781 kg (1.72 lb)
  • Packaged Volume: 0.006 m3 (0.22 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-06
  • HTS Code: 8421298090
  • UPC Code: 742330178256

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
EUCLID 12627431
EUCLID E12627431
HITACHI 12627431
