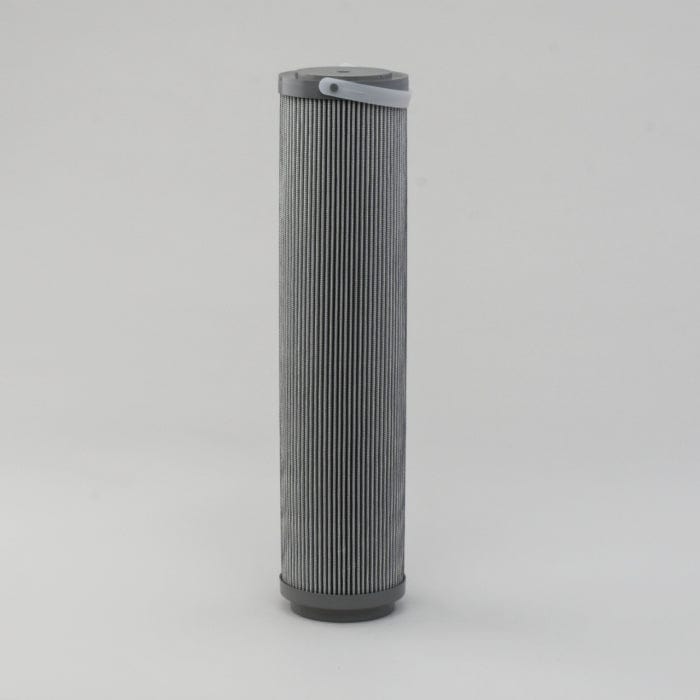

Hydraulic Filter, Cartridge Dt - Donaldson P566534

Hydraulic Filter, Cartridge Dt - Donaldson P566534

Regular price £128.60
Regular price Sale price £128.60
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P566534

Hydraulic Filter, Cartridge Dt
View full details

Collapsible content

Specifications

Attributes

  • Seal Material: Viton
  • Outer Diameter: 101.2 mm (3.98 inch)
  • Inner Diameter: 64 mm (2.52 inch)
  • Length: 407.2 mm (16.03 inch)
  • Efficiency Beta 1000: 5 micron
  • Collapse Burst: 10.3 bar (149 psi)
  • Style: Cartridge
  • Brand: DT High-Performance
  • Media Type: Synthetic

Packaged Dimensions

  • Packaged Length: 0.443 m (17.72 inch)
  • Packaged Width: 0.108 m (4.33 inch)
  • Packaged Height: 0.108 m (4.33 inch)
  • Packaged Weight: 0.795 kg (1.75 lb)
  • Packaged Volume: 0.005 m3 (0.19 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-06
  • HTS Code: 8421298090
  • UPC Code: 742330178287
