• Donaldson Hydraulic Filter, Cartridge Dt - Donaldson P566476
1 1

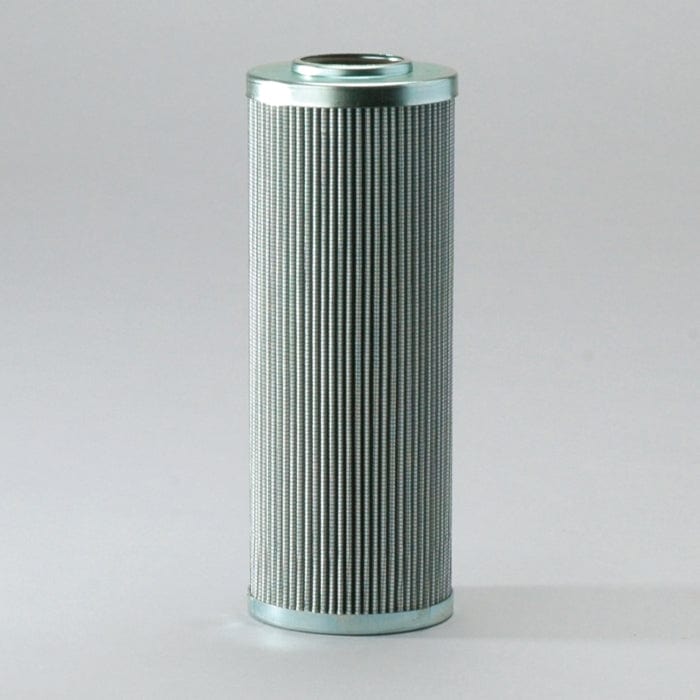

Hydraulic Filter, Cartridge Dt - Donaldson P566476

Hydraulic Filter, Cartridge Dt - Donaldson P566476

£104.94
£104.94
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P566476

Hydraulic Filter, Cartridge Dt
View full details

Specifications

Attributes

  • Seal Material: Viton
  • Outer Diameter: 86.4 mm (3.40 inch)
  • Inner Diameter: 49.3 mm (1.94 inch)
  • Overall Length: 209.6 mm (8.25 inch)
  • Efficiency Beta 1000: 8 micron
  • Collapse Burst: 10.3 bar (149 psi)
  • Style: Cartridge
  • Brand: DT High-Performance
  • Media Type: Synthetic

Packaged Dimensions

  • Packaged Length: 0.105 m (4.20 inch)
  • Packaged Width: 0.105 m (4.20 inch)
  • Packaged Height: 0.249 m (9.96 inch)
  • Packaged Weight: 0.563 kg (1.24 lb)
  • Packaged Volume: 0.003 m3 (0.10 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-06
  • HTS Code: 8421298090
  • UPC Code: 742330177945
