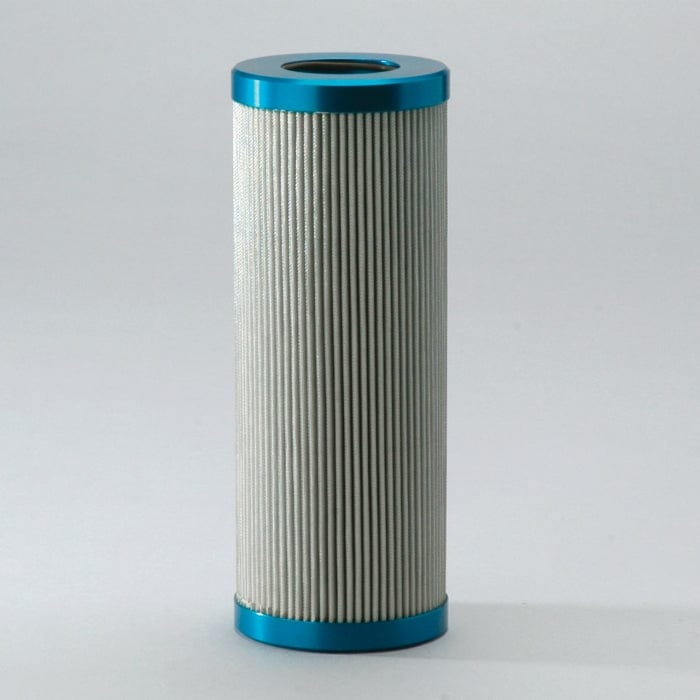

Hydraulic Filter, Cartridge Dt - Donaldson P566390

Hydraulic Filter, Cartridge Dt - Donaldson P566390

£240.32
£240.32
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P566390

Hydraulic Filter, Cartridge Dt
View full details

Specifications

Attributes

  • Seal Material: Viton
  • Outer Diameter: 79.4 mm (3.13 inch)
  • Inner Diameter: 43.2 mm (1.7 inch)
  • Length: 427.1 mm (16.81 inch)
  • Efficiency Beta 1000: 12 micron
  • Collapse Burst: 207 bar (3002 psi)
  • Style: Cartridge
  • Brand: DT High-Performance
  • Media Type: Synthetic

Packaged Dimensions

  • Packaged Length: 0.120 m (4.80 inch)
  • Packaged Width: 0.120 m (4.80 inch)
  • Packaged Height: 0.588 m (23.50 inch)
  • Packaged Weight: 2.542 kg (5.60 lb)
  • Packaged Volume: 0.009 m3 (0.31 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-11
  • HTS Code: 8421298090
  • UPC Code: 742330176795

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
SWIFT SF96511615UM
