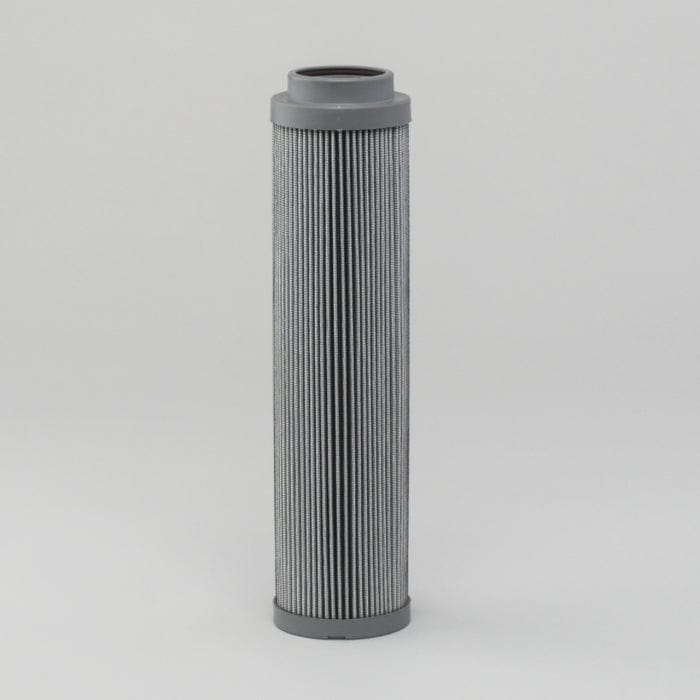

Hydraulic Filter, Cartridge Dt - Donaldson P566383

Hydraulic Filter, Cartridge Dt - Donaldson P566383

£82.65
£82.65
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P566383

Hydraulic Filter, Cartridge Dt
View full details

Specifications

Attributes

  • Seal Material: Viton
  • Outer Diameter: 81.2 mm (3.2 inch)
  • Inner Diameter: 51.1 mm (2.01 inch)
  • Overall Length: 420.6 mm (16.56 inch)
  • Efficiency Beta 1000: 5 micron
  • Collapse Burst: 10.3 bar (149 psi)
  • Style: Cartridge
  • Brand: DT High-Performance
  • Media Type: Synthetic

Packaged Dimensions

  • Packaged Length: 0.433 m (17.32 inch)
  • Packaged Width: 0.099 m (3.94 inch)
  • Packaged Height: 0.099 m (3.94 inch)
  • Packaged Weight: 0.545 kg (1.20 lb)
  • Packaged Volume: 0.004 m3 (0.16 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-05
  • HTS Code: 8421298090
  • UPC Code: 742330176726

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
MP FILTRI MP3832
MP FILTRI MP16136
PTI PC96060GFV
PTI PC96060GFB
