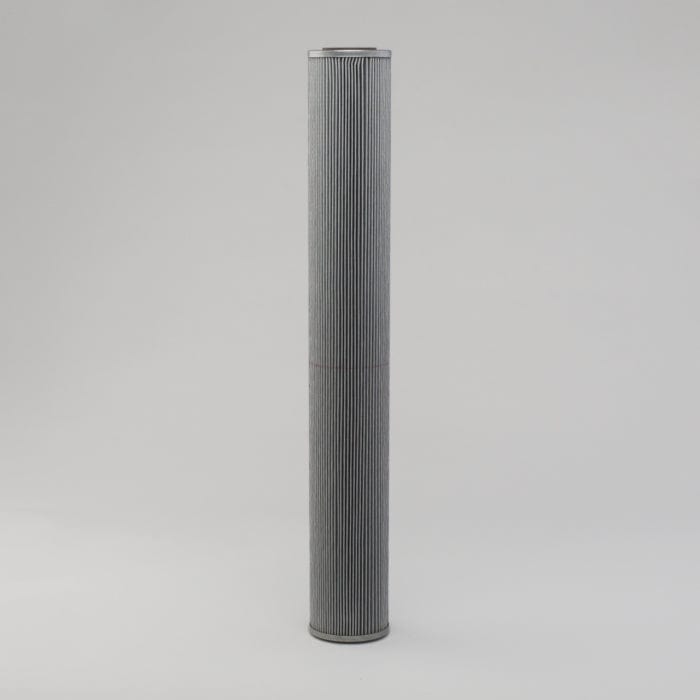

Hydraulic Filter, Cartridge Dt - Donaldson P566280

Attributes

• Seal Material: Viton
• Outer Diameter: 97.9 mm (3.85 inch)
• Inner Diameter: 40.8 mm (1.61 inch)
• Length: 697.69 mm (27.47 inch)
• Overall Length: 704.8 mm (27.75 inch)
• Efficiency Beta 1000: 12 micron
• Collapse Burst: 10.3 bar (149 psi)
• Style: Cartridge
• Series: WL16
• W451:
• Brand: DT High-Performance
• Media Type: Synthetic
• Primary Application: SCHROEDER KKKZ10

Packaged Dimensions

• Packaged Length: 0.975 m (38.98 inch)
• Packaged Width: 0.108 m (4.33 inch)
• Packaged Height: 0.108 m (4.33 inch)
• Packaged Weight: 1.939 kg (4.27 lb)
• Packaged Volume: 0.012 m3 (0.42 ft3)

Other Information

• Country of Origin: United States
• NMFC Code: 069100-06
• HTS Code: 8421298090
• UPC Code: 742330175286
